A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal via array can help to dissipate heat efficiently.
To ensure EMC, use a shielded cable for the output, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead to filter out electromagnetic interference (EMI). Additionally, follow good PCB design practices, such as using a solid ground plane and minimizing loop areas.
The maximum allowed voltage drop across the device is typically 1.5V to 2V, depending on the specific application and operating conditions. Exceeding this voltage drop may lead to reduced efficiency, increased heat generation, or even device damage.
Use a voltage supervisor or a voltage monitor IC to detect overvoltage and undervoltage conditions. You can also add external protection components, such as a voltage-dependent resistor (VDR) or a transient voltage suppressor (TVS), to protect the device from voltage transients.
The recommended operating temperature range for the TLE4729GXUMA1 is -40°C to 150°C. Operating the device outside this range may affect its performance, reliability, or lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE4729GXUMA1 Overview

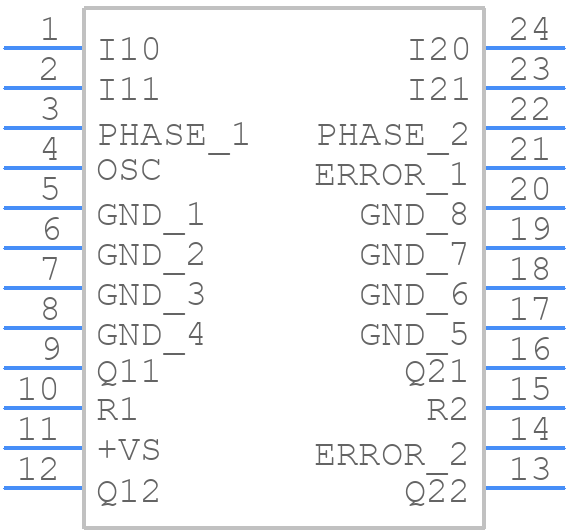

Use the download button to access the TLE4729GXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE47,
or try a keyword search, such as Motion Control Electronics
