TLE5205-2G - Infineon

Description: DC Motor Driver H-Bridge 5A 40V TO263 Infineon TLE5205-2G BLDC Motor Driver IC, 40 V 5A, 7-Pin TO-263

Download TLE5205-2G Model

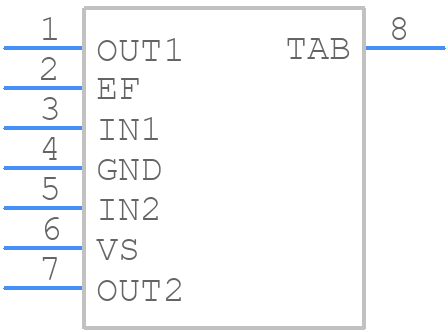

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

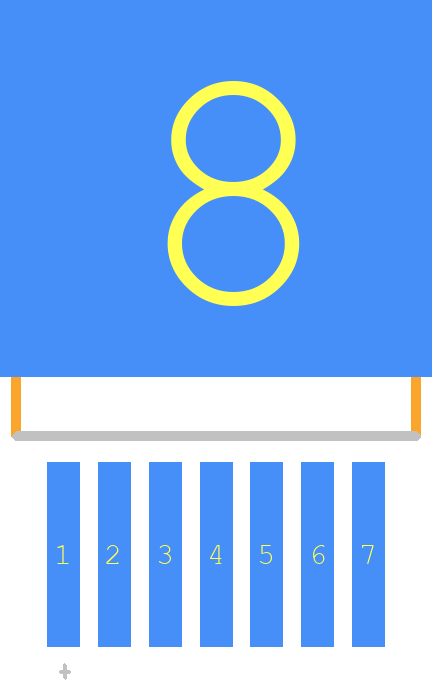

PCB Footprints
TLE5205-2G - Infineon PCB footprint - Other - Other - PG-TO263-7-1
click to zoom
3D Models
TLE5205-2G - Infineon  - 3D model - Other - PG-TO263-7-1
click to zoom

TLE5205-2G Details

  • Manufacturer Part Number:

    TLE5205-2G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    D2PAK

  • Package Description:

    GREEN, PLASTIC, TO-263, 7 PIN

  • Pin Count:

    4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Equivalence Code:

    SMSIP7H,.55,50TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    13.2 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Width:

    9.25 mm

TLE5205-2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLE5205-2G is -40°C to 150°C.
  • To ensure proper cooling, ensure a good thermal connection between the device and a heat sink, and provide adequate airflow around the device.
  • The recommended PCB layout for the TLE5205-2G involves using a multi-layer PCB with a solid ground plane, and keeping the high-current paths as short as possible.
  • Use a voltage regulator or a voltage supervisor to ensure the input voltage to the TLE5205-2G remains within the recommended operating range.
  • The maximum current rating for the TLE5205-2G is 5A, but this can be limited by the PCB design and thermal considerations.
