TLE7189FXUMA2 - Infineon

Description: Motor/Motion/Ignition Controllers & Drivers DRIVER_IC

Download TLE7189FXUMA2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

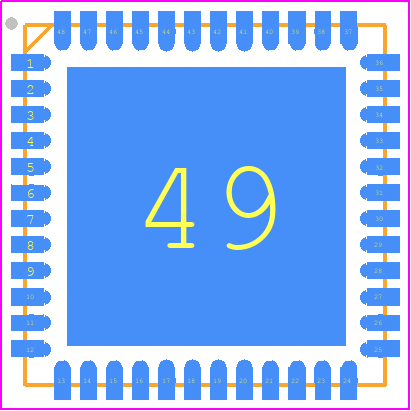

TLE7189FXUMA2 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PG-VQFN-48-1
click to zoom
3D Models
TLE7189FXUMA2 - Infineon  - 3D model - Quad Flat No-Lead - PG-VQFN-48-1
click to zoom

TLE7189FXUMA2 Details

  • Manufacturer Part Number:

    TLE7189FXUMA2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    GREEN, PLASTIC, VQFN-48

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Output Current-Max:

    0.01 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC48,.35SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    9 mm

TLE7189FXUMA2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLE7189FXUMA2 is -40°C to 150°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm, and to follow the layout guidelines provided in the datasheet.
  • The maximum input voltage that the TLE7189FXUMA2 can handle is 40V.
  • The output voltage of the TLE7189FXUMA2 can be calculated using the formula: Vout = (R1/R2) * (Vref - Vfb), where R1 and R2 are the resistors connected to the FB pin, Vref is the internal reference voltage, and Vfb is the feedback voltage.
  • The EN (Enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it is low, the device is disabled.
