Infineon provides a recommended PCB layout in the application note AN2018-01, which includes guidelines for thermal pad connection, thermal vias, and copper pouring to ensure optimal thermal performance.
The input capacitor selection depends on the input voltage, output current, and ripple requirements. A general guideline is to choose a capacitor with a capacitance value of at least 10uF, a voltage rating of 1.5 to 2 times the input voltage, and a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
The TLE73682EXUMA3 is specified to operate from -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. It's recommended to consult the thermal design guidelines and perform thermal simulations to ensure the device operates within the specified temperature range.
Yes, the TLE73682EXUMA3 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design guidelines, testing, and validation procedures to ensure the device meets the specific application requirements.
To troubleshoot issues with the TLE73682EXUMA3, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout, component selection, and soldering quality. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult the datasheet, application notes, and Infineon's technical support resources for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE73682EXUMA3 Overview

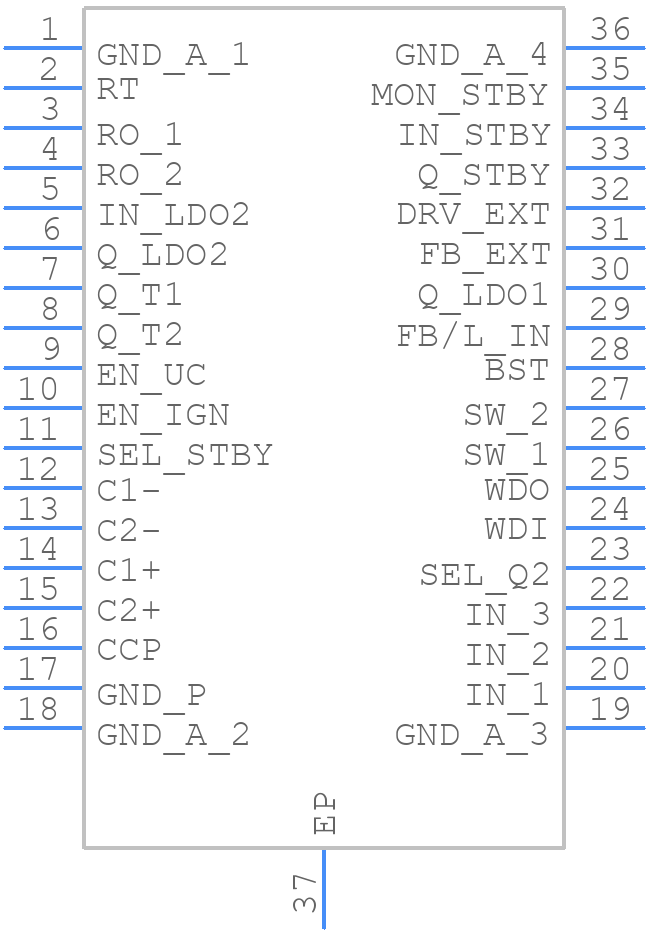

Use the download button to access the TLE73682EXUMA3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE73,
or try a keyword search, such as Power Management Circuits
