- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TLE8261E
- Part Number TLE8261E
- Manufacturer Infineon
- Pin Count 37
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PG-DSO-36-38_2022
- Released Date Mar 22, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TLE8261E Details
-
Manufacturer Part Number:
TLE8261E
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
DSO-36
-
Pin Count:
36
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
0
TLE8261E Frequently Asked Questions (FAQs)
-
Infineon provides a recommended PCB layout in the application note AN2019-11, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
Infineon provides a range of application notes and design guides that provide configuration guidelines for specific automotive applications, such as battery management, power distribution, and sensor interfaces. Additionally, Infineon's support team can provide customized support for specific applications.
-
The TLE8261E is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and use case. It's recommended to consult with Infineon's support team for specific guidance on temperature range and thermal management.
-
Yes, the TLE8261E is a versatile device that can be used in a range of applications beyond automotive, including industrial, consumer, and medical devices. However, it's essential to ensure that the device meets the specific requirements of the target application, including operating conditions, safety standards, and regulatory compliance.
-
The recommended power-up sequence for the TLE8261E involves powering up the device in a specific order, including the power supply, clock, and reset signals. Infineon provides guidelines for the power-up sequence in the device's datasheet and application notes.
Trust Checks
Community Provided
System Verified
Community Approved
TLE8261E Overview

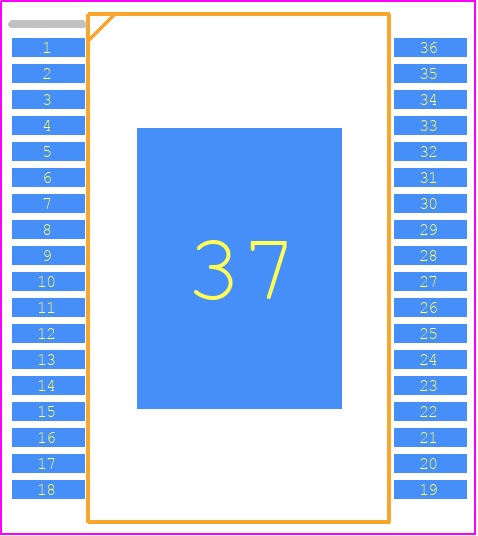

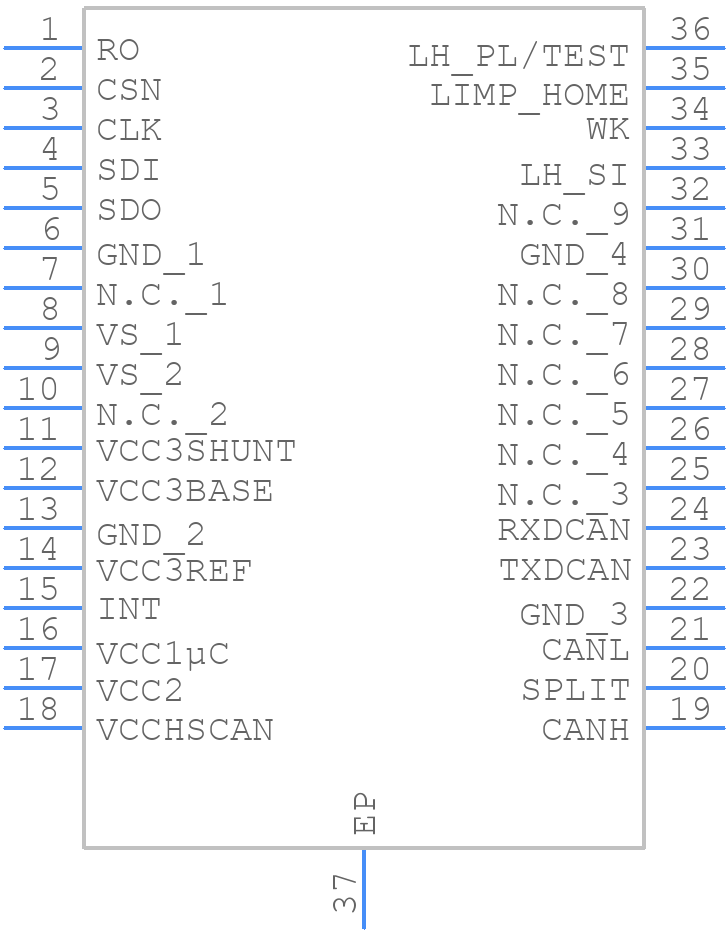

Use the download button to access the TLE8261E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE82,
or try a keyword search, such as Power Management Circuits
