TLE9263BQXV33XUMA1 - Infineon

Description: Power Management Specialized - PMIC BODY SYSTEM ICS

Download TLE9263BQXV33XUMA1 Model

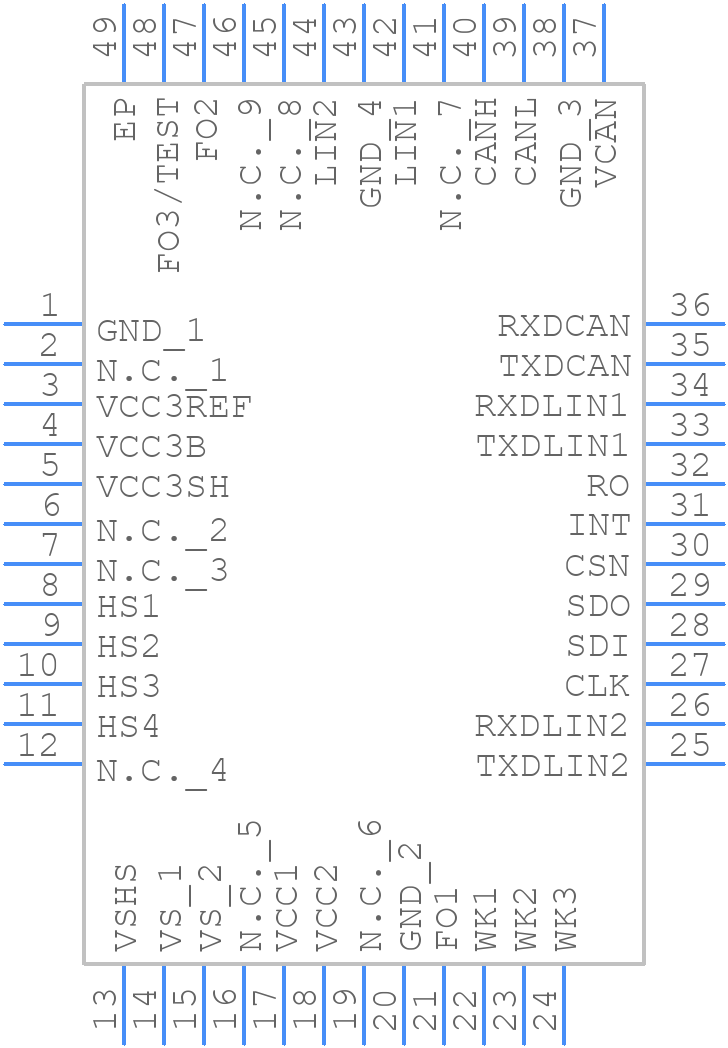

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE9263BQXV33XUMA1 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PG-VQFN-48_2020
click to zoom
3D Models
TLE9263BQXV33XUMA1 - Infineon  - 3D model - Quad Flat No-Lead - PG-VQFN-48_2020
click to zoom

TLE9263BQXV33XUMA1 Details

  • Manufacturer Part Number:

    TLE9263BQXV33XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VQFN-48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    SYSTEM BASIS CHIP

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    6.5 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.85V

  • Width:

    7 mm

TLE9263BQXV33XUMA1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TLE9263BQXV33XUMA1 can be found in the Infineon application note AN2018-01, which provides guidelines for PCB design, component placement, and thermal management.
  • The TLE9263BQXV33XUMA1 has a built-in low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured for low-power mode by setting the SLEEP pin high and the WAKE pin low. Refer to the datasheet for more information on power management.
  • The TLE9263BQXV33XUMA1 has an operating temperature range of -40°C to 150°C, making it suitable for automotive and industrial applications.
  • Infineon provides a troubleshooting guide for the TLE9263BQXV33XUMA1, which can be found in the datasheet or on the Infineon website. Additionally, engineers can use oscilloscopes and logic analyzers to debug issues with the device.
  • The TLE9263BQXV33XUMA1 has a high-power dissipation capability, and thermal management is critical to ensure reliable operation. Engineers should consider using thermal vias, heat sinks, and thermal interface materials to manage heat dissipation.
