- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TLE94004EP
- Part Number TLE94004EP
- Manufacturer Infineon
- Pin Count 15
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PG-TSDSO-14
- Released Date Jan 25, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TLE94004EP Details
-
Manufacturer Part Number:
TLE94004EP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
12
-
Analog IC - Other Type:
HALF BRIDGE BRUSH DC MOTOR CONTROLLER
-
Moisture Sensitivity Level:
2A
Trust Checks
Community Provided
System Verified
Community Approved
TLE94004EP Overview

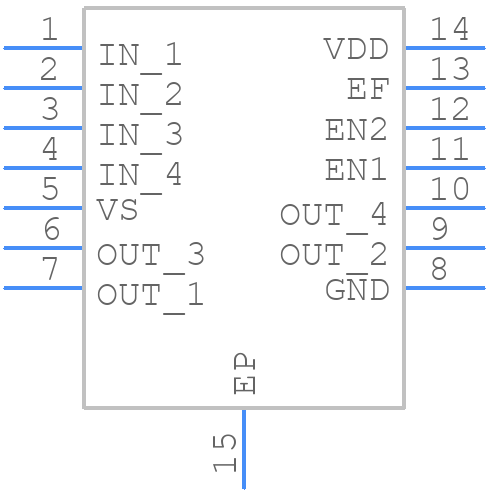

Use the download button to access the TLE94004EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE94,
or try a keyword search, such as Motion Control Electronics
