TLE94106ESXUMA1 - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers BODY BRIDGES

Download TLE94106ESXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

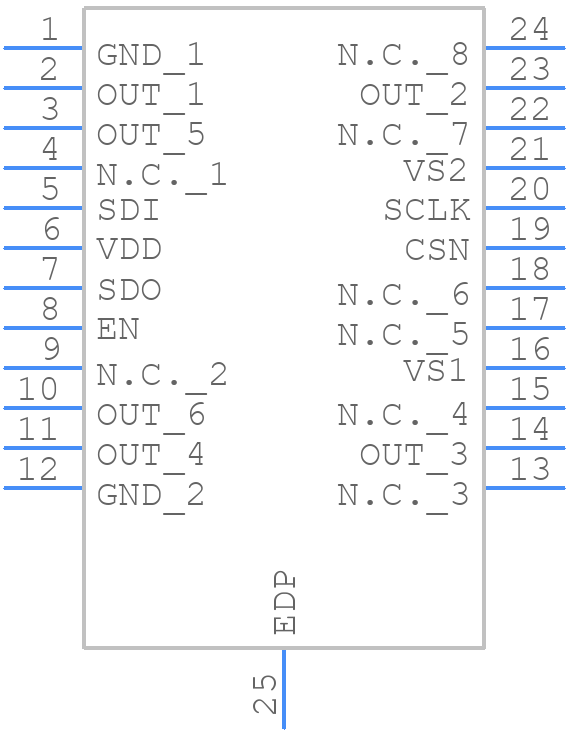

TLE94106ESXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE94106ESXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSDSO-24
click to zoom
3D Models
TLE94106ESXUMA1 - Infineon - 3D model - Small Outline Packages - PG-TSDSO-24
click to zoom

TLE94106ESXUMA1 Details

  • Manufacturer Part Number:

    TLE94106ESXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

TLE94106ESXUMA1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TLE94106ESXUMA1 can be found in the Infineon application note AN2018-01, which provides guidelines for PCB design, component placement, and thermal management.
  • The TLE94106ESXUMA1 can be configured for low-power mode by setting the EN pin to logic low and the STBY pin to logic high. Additionally, the device can be put into sleep mode by setting the SLP pin to logic low.
  • The maximum current rating for the TLE94106ESXUMA1 is 1.5 A per channel, with a total current limit of 3 A for all channels combined.
  • Troubleshooting the TLE94106ESXUMA1 typically involves checking the device's power supply, clock signal, and output voltage. Engineers can also use oscilloscopes and logic analyzers to debug the device's behavior.
  • The TLE94106ESXUMA1 has a maximum junction temperature of 150°C. Engineers should ensure proper heat sinking, thermal vias, and PCB design to prevent overheating and thermal shutdown.
