SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH
Seated Height-Max:
1.7 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
3.9 mm
TLE94110ELXUMA1 Frequently Asked Questions (FAQs)
The recommended PCB layout for the TLE94110ELXUMA1 can be found in the Infineon application note AN2018-01, which provides guidelines for PCB design, component placement, and thermal management.
The TLE94110ELXUMA1 can be configured for low-power mode by setting the EN pin to logic low, which reduces the current consumption to a minimum. Additionally, the device can be put into sleep mode by setting the SLEEP pin to logic high.
The maximum operating temperature range for the TLE94110ELXUMA1 is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance and reliability.
To troubleshoot issues with the TLE94110ELXUMA1, start by checking the power supply voltage, clock signal, and input/output signals. Use an oscilloscope to verify the signal integrity and check for any signs of noise or distortion. Consult the datasheet and application notes for troubleshooting guidelines and FAQs.
The TLE94110ELXUMA1 is a general-purpose power management IC and is not specifically designed for safety-critical applications. However, it can be used in safety-critical applications if proper safety measures are implemented, such as redundant systems, error detection, and correction mechanisms.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE94110ELXUMA1 Overview

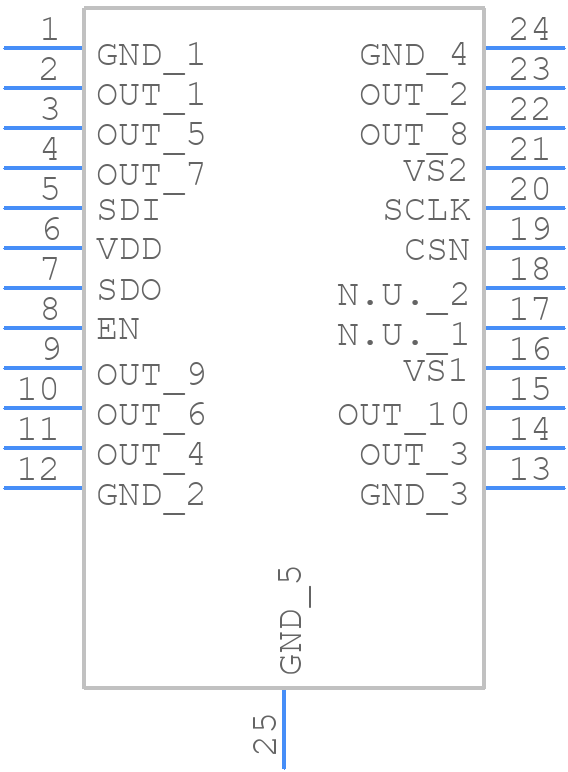

Use the download button to access the TLE94110ELXUMA1 schematic symbol, PCB footprint, and 3D model.
