TLE94112ELXUMA1 - Infineon

Description: INFINEON - TLE94112ELXUMA1 - Motor Driver/Controller, Half Bridge, 5.5V to 18V, 40V/2A/12 Outputs, SSOP-24

Download TLE94112ELXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

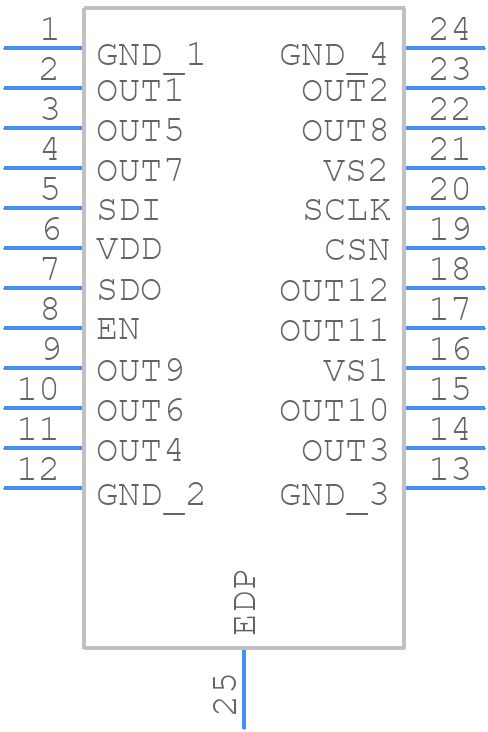

TLE94112ELXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE94112ELXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-SSOP-24
click to zoom
3D Models
TLE94112ELXUMA1 - Infineon - 3D model - Small Outline Packages - PG-SSOP-24
click to zoom

TLE94112ELXUMA1 Details

  • Manufacturer Part Number:

    TLE94112ELXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TLE94112ELXUMA1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TLE94112ELXUMA1 can be found in the Infineon application note AN2018-01, which provides guidelines for PCB design, component placement, and thermal management.
  • The TLE94112ELXUMA1 can be configured for low-power mode by setting the EN pin to logic low, which reduces the current consumption to a minimum. Additionally, the device can be put into sleep mode by setting the SLP pin to logic high.
  • The TLE94112ELXUMA1 has an operating temperature range of -40°C to 150°C, making it suitable for automotive and industrial applications.
  • Troubleshooting issues with the TLE94112ELXUMA1 can be done by checking the device's status registers, monitoring the output voltage and current, and verifying the input voltage and clock signals. Additionally, Infineon provides a range of development tools and software that can aid in debugging and troubleshooting.
  • Yes, the TLE94112ELXUMA1 is designed to meet the requirements of automotive safety standards such as ISO 26262 and IEC 61508, making it suitable for use in safety-critical automotive applications.
