TLE94713ESV33XUMA1 - Infineon

Description: Infineon BODY SYSTEM ICS

Download TLE94713ESV33XUMA1 Model

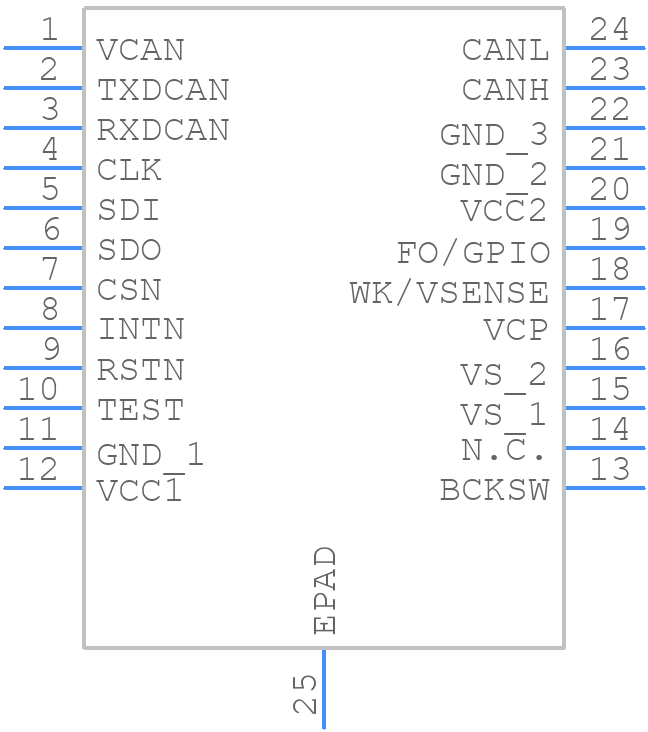

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE94713ESV33XUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSDSO-24-1
click to zoom
3D Models
TLE94713ESV33XUMA1 - Infineon  - 3D model - Small Outline Packages - PG-TSDSO-24-1
click to zoom

TLE94713ESV33XUMA1 Details

  • Manufacturer Part Number:

    TLE94713ESV33XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DSO-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    SYSTEM BASIS CHIP

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.15 mm

  • Supply Current-Max (Isup):

    6.5 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.6V

  • Width:

    3.9 mm

TLE94713ESV33XUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2018-01, which includes guidelines for thermal pad connection, thermal vias, and copper pouring to ensure optimal thermal performance.
  • The TLE94713ESV33XUMA1 has a built-in low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured for low-power mode by setting the SLEEP pin high and the WAKE pin low. Refer to the datasheet for specific timing and voltage requirements.
  • The maximum current rating for the TLE94713ESV33XUMA1 is 1.5A per channel, with a total current limit of 3A for all channels combined. However, it's recommended to derate the current based on the ambient temperature and PCB design.
  • Infineon provides a troubleshooting guide in the application note AN2018-02, which covers common issues and their solutions, such as output voltage deviations, overcurrent protection, and thermal shutdown.
  • Yes, the TLE94713ESV33XUMA1 is designed to meet the requirements of automotive safety standards such as ISO 26262. Infineon provides a safety manual and a FMEDA report to support the development of safety-critical systems.
