SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Screening Level:
AEC-Q100
Seated Height-Max:
1.15 mm
Supply Voltage-Max (Vsup):
28 V
Supply Voltage-Min (Vsup):
5.5 V
Supply Voltage-Nom (Vsup):
13.5 V
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
3.9 mm
TLE94713ESXUMA1 Frequently Asked Questions (FAQs)
A good PCB layout for the TLE94713ESXUMA1 should include a solid ground plane, wide power traces, and a thermal relief pattern around the device to facilitate heat dissipation. It's also recommended to place the device near a heat sink or a metal plate to improve thermal performance.
To ensure proper configuration, carefully review the datasheet and application notes, and consult with Infineon's technical support team if necessary. Also, use the device's evaluation board or a similar development platform to test and validate your configuration before implementing it in your final design.
When selecting external components, consider the device's operating frequency, voltage rating, and current handling capabilities. Choose components with suitable voltage and current ratings, and ensure they can handle the device's switching frequency. Additionally, consider the component's power dissipation, ESR, and ESL to ensure optimal performance.
To troubleshoot issues with the TLE94713ESXUMA1, start by reviewing the datasheet and application notes, and checking the device's configuration and PCB layout. Use oscilloscopes and logic analyzers to monitor the device's signals and identify potential issues. Consult Infineon's technical support team or online forums for guidance and potential solutions.
To ensure reliable operation over temperature, consider the device's thermal characteristics, such as its junction-to-ambient thermal resistance and maximum junction temperature. Implement a suitable thermal management strategy, such as using heat sinks, thermal interfaces, or forced air cooling, to keep the device within its recommended operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE94713ESXUMA1 Overview

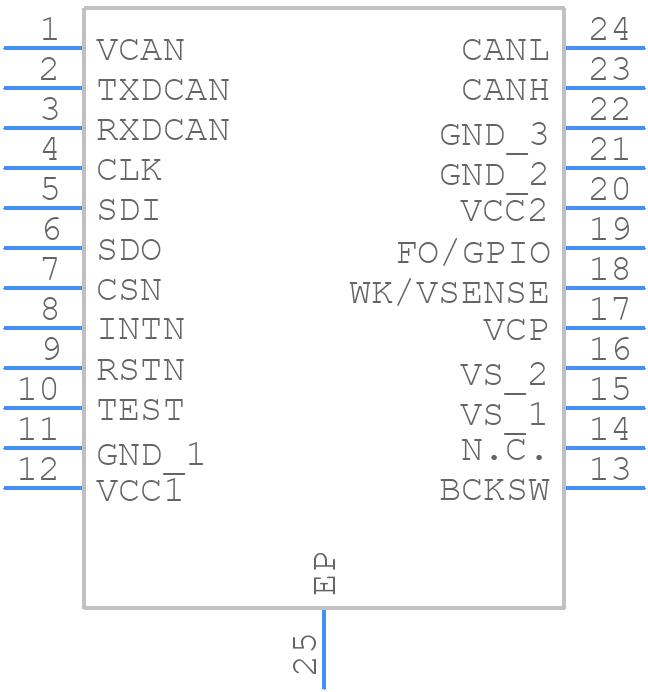

Use the download button to access the TLE94713ESXUMA1 schematic symbol, PCB footprint, and 3D model.
