SMALL OUTLINE, HEAT SINK/SLUG, EXTREMELY THIN PROFILE, SHRINK PITCH
Screening Level:
AEC-Q100
Seated Height-Max:
1.15 mm
Supply Voltage-Max (Vsup):
28 V
Supply Voltage-Min (Vsup):
5.5 V
Supply Voltage-Nom (Vsup):
13.5 V
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
3.9 mm
TLE9471ESXUMA1 Frequently Asked Questions (FAQs)
A good PCB layout for the TLE9471ESXUMA1 should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. Additionally, it's recommended to place the device near a heat sink or a metal plate to further improve thermal performance.
To ensure proper configuration, refer to the device's datasheet and application notes, and consult with Infineon's technical support team if necessary. Additionally, consider factors such as input voltage, output current, and fault detection requirements to select the optimal configuration for your application.
When designing a fault-tolerant system using the TLE9471ESXUMA1, consider implementing redundant power paths, using fault detection and diagnosis mechanisms, and incorporating error correction mechanisms. Additionally, ensure that the system can detect and respond to faults in a timely and reliable manner.
To troubleshoot issues with the TLE9471ESXUMA1, start by consulting the device's datasheet and application notes. Check the device's configuration, input voltage, and output current. Use oscilloscopes or logic analyzers to monitor the device's signals and identify potential issues. If necessary, contact Infineon's technical support team for further assistance.
In high-temperature environments, ensure the TLE9471ESXUMA1 is properly heat-sinked and consider using thermal interface materials to improve heat transfer. Monitor the device's junction temperature and adjust the system's thermal design accordingly. Additionally, consider using thermal simulation tools to optimize the system's thermal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE9471ESXUMA1 Overview

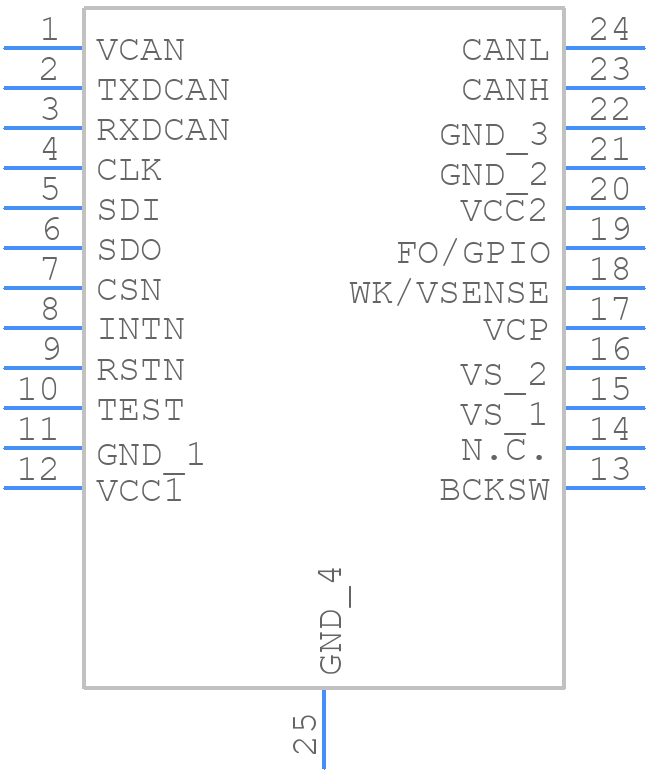

Use the download button to access the TLE9471ESXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE94,
or try a keyword search, such as Power Management Circuits
