Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a separate ground plane.
The TLIN24415DMTTQ1 has a thermal pad on the bottom, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow around the device.
The recommended input capacitance is not explicitly stated in the datasheet, but a general rule of thumb is to use a capacitance value between 10nF to 100nF. However, the optimal value depends on the specific application, signal frequency, and impedance. It's recommended to experiment with different values to find the optimal capacitance for your design.
To ensure signal integrity, use controlled impedance traces, and keep the signal traces short and direct. Use a signal return path close to the signal trace to minimize loop inductance. Additionally, consider using a common-mode filter or a differential filter to reduce noise and improve signal quality.
The TLIN24415DMTTQ1 has an operating temperature range of -40°C to 125°C. However, it's essential to consider the derating curves provided in the datasheet to ensure the device operates within its specified parameters across the entire temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLIN24415DMTTQ1 Overview

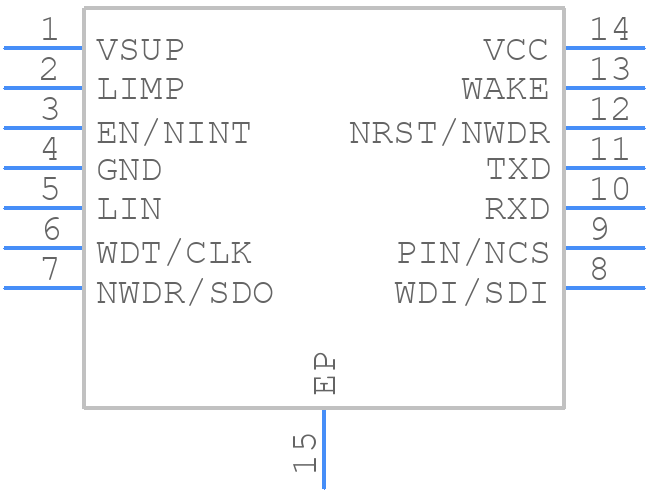

Use the download button to access the TLIN24415DMTTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLIN2,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
