TLK10022CTR - Texas Instruments

Description: 10Gbps Dual-Channel Multi-Rate Universal Link Aggregator

Download TLK10022CTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TLK10022CTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

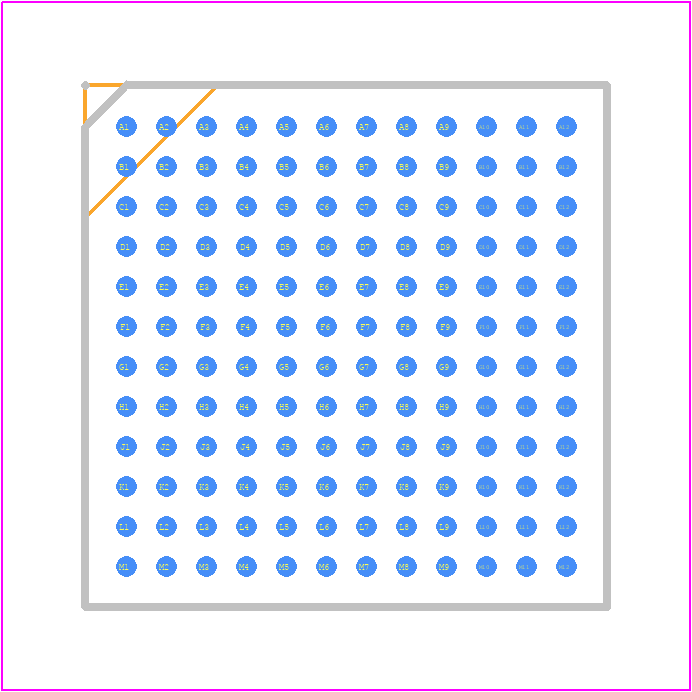

TLK10022CTR - Texas Instruments PCB footprint - BGA - BGA - CTR (S-PBGA-N144)
click to zoom
3D Models
TLK10022CTR - Texas Instruments - 3D model - BGA - CTR (S-PBGA-N144)
click to zoom

TLK10022CTR Details

  • Manufacturer Part Number:

    TLK10022CTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    144

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    10000000 Mbps

  • JESD-30 Code:

    S-PBGA-B144

  • JESD-609 Code:

    e1

  • Length:

    13.05 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3.25 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13.05 mm

TLK10022CTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLK10022CTR involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the connector. TI provides a recommended layout in the application note SLVA883.
  • To ensure signal integrity, use controlled impedance traces, minimize stub lengths, and use a common mode filter or a ferrite bead to reduce EMI. Also, follow the guidelines in the TI application note SLVA884 for signal integrity.
  • The TLK10022CTR supports cable lengths up to 100 meters, but this can vary depending on the specific application and cable quality. It's recommended to consult the TI application note SLVA885 for cable length and quality guidelines.
  • To troubleshoot issues, start by checking the power supply, clock, and reset signals. Use an oscilloscope to verify signal integrity and check for noise or distortion. Consult the TI troubleshooting guide SLVA886 for more detailed guidance.
  • Yes, the TLK10022CTR can be used in redundant or fault-tolerant systems. TI provides guidelines for implementing redundancy and fault tolerance in the application note SLVA887.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLK10022CTR Overview

Use the download button to access the TLK10022CTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLK10, or try a keyword search, such as Other Telecom ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
