TLK10081CTR - Texas Instruments

Description: 10-Gbps 1 to 8 channel multi-rate redundant link aggregator

Download TLK10081CTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TLK10081CTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

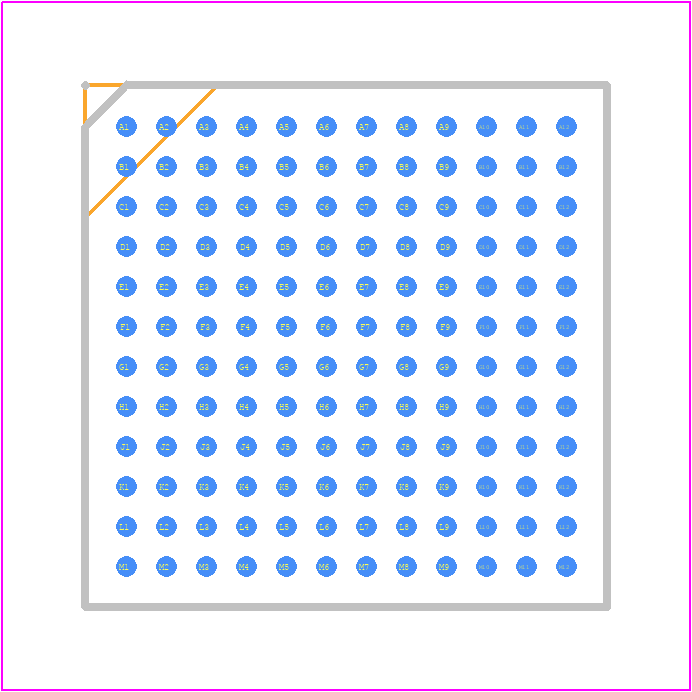

TLK10081CTR - Texas Instruments PCB footprint - BGA - BGA - CTR (S-PBGA-N144)
click to zoom
3D Models
TLK10081CTR - Texas Instruments - 3D model - BGA - CTR (S-PBGA-N144)
click to zoom

TLK10081CTR Details

  • Manufacturer Part Number:

    TLK10081CTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    144

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    10000000 Mbps

  • JESD-30 Code:

    S-PBGA-B144

  • JESD-609 Code:

    e1

  • Length:

    13.05 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3.25 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13.05 mm

TLK10081CTR Frequently Asked Questions (FAQs)

  • The maximum cable length supported by TLK10081CTR is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at 1 Gbps and up to 40 meters at 10 Gbps.
  • The TLK10081CTR can be configured using the I2C interface or through the use of external resistors. The device has several registers that can be programmed to configure the device for a specific application. The datasheet provides a detailed description of the registers and their functions.
  • The power consumption of the TLK10081CTR depends on the operating frequency and the mode of operation. In typical applications, the device consumes around 350 mW at 1 Gbps and around 1.2 W at 10 Gbps.
  • The TLK10081CTR is a IEEE 802.3-compliant device and is compatible with other PHY devices that comply with the same standard. However, it's recommended to check the specific compatibility with the target device before designing the system.
  • Troubleshooting issues with the TLK10081CTR typically involves checking the device configuration, signal integrity, and power supply. The datasheet provides a detailed troubleshooting guide, and Texas Instruments also provides additional resources and support through their website.
