The TLK110PT supports cable lengths up to 40 meters (131.2 feet) at 1 Gbps and up to 20 meters (65.6 feet) at 10 Gbps, depending on the cable quality and environment.
To ensure signal integrity and minimize EMI, use shielded cables, keep the transmitter and receiver close to each other, and follow proper PCB layout and grounding techniques. Additionally, use EMI filters or common-mode chokes if necessary.
The TLK110PT has a typical power consumption of 350 mW at 1 Gbps and 550 mW at 10 Gbps. To reduce power consumption, use the device's power-down mode, reduce the operating frequency, or use a lower voltage supply.
Use a high-quality clock source, such as a crystal oscillator or a phase-locked loop (PLL), and ensure that the clock frequency is within the specified range (25 MHz to 125 MHz). Additionally, use clock buffering and distribution techniques to minimize clock skew and jitter.
Follow proper PCB design guidelines, such as using a solid ground plane, minimizing trace lengths and impedance, and keeping the transmitter and receiver close to each other. Also, use a 4-layer PCB with a dedicated power plane and a solid ground plane.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLK110PT Overview

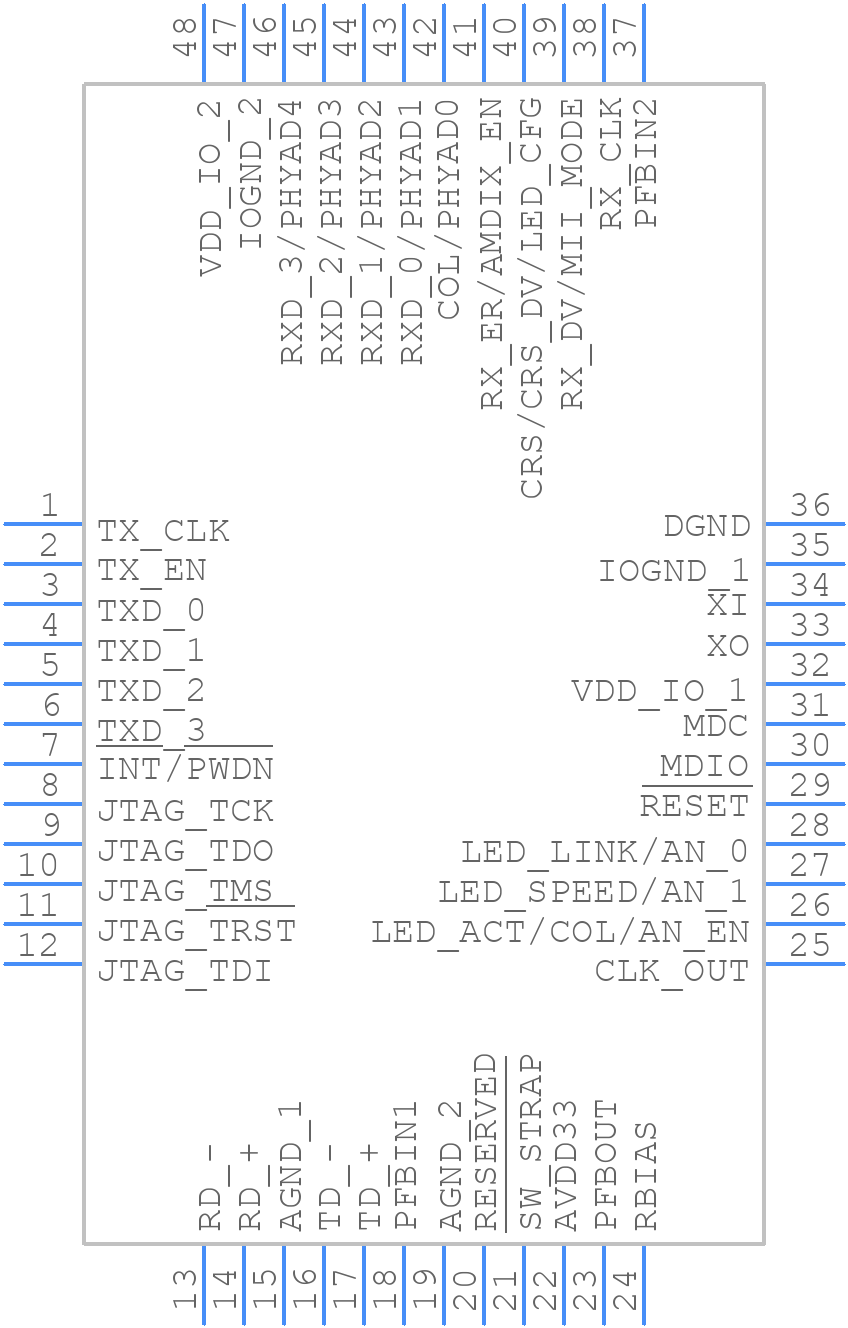

Use the download button to access the TLK110PT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLK11,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
