TLK111PTR - Texas Instruments

Description: TLK111 Industrial Temperature 10/100Mbs Ethernet Physical Layer Transceiver

Download TLK111PTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

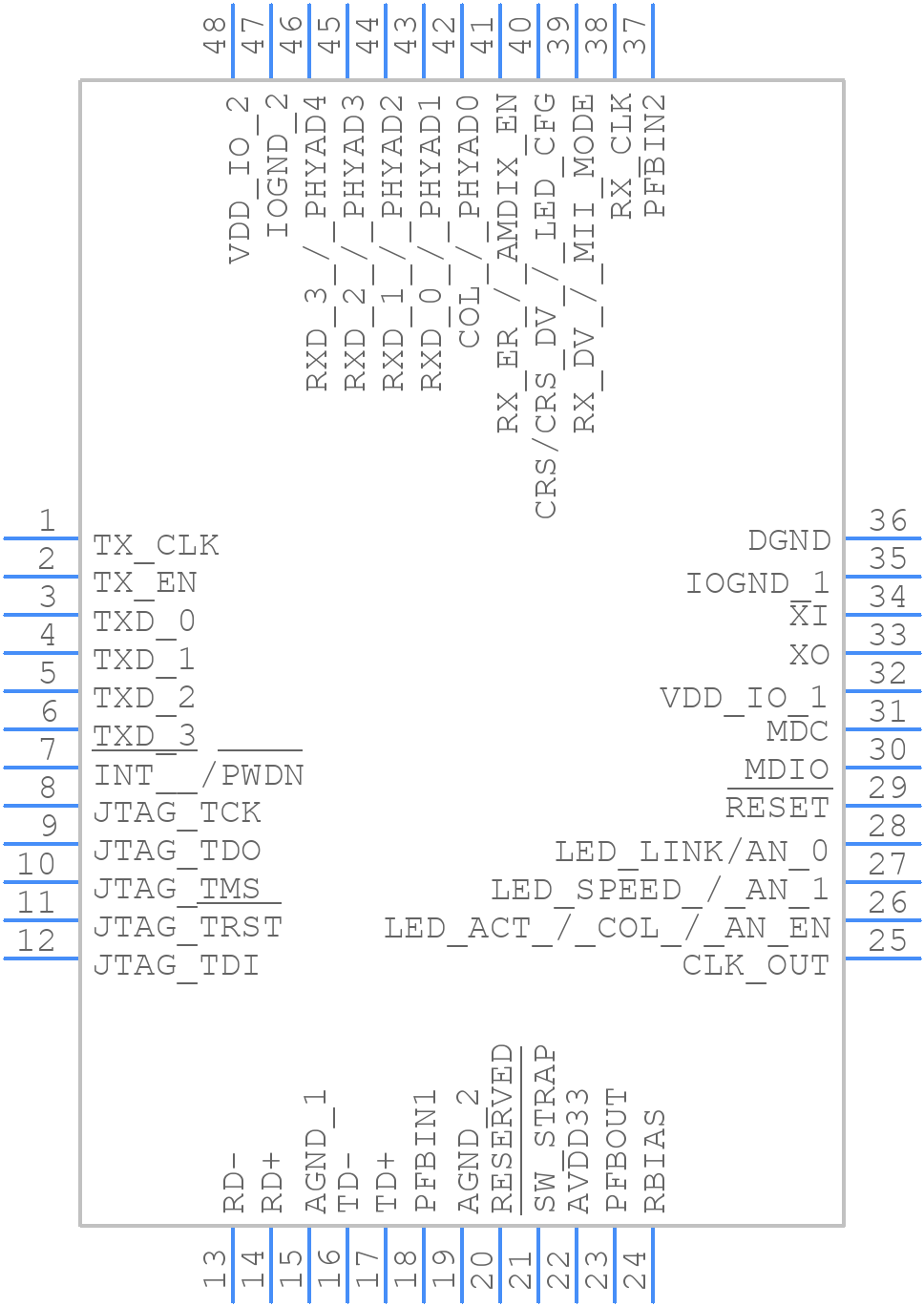

Symbol
TLK111PTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLK111PTR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PT (S-PQFP-G48
click to zoom
3D Models
TLK111PTR - Texas Instruments - 3D model - Quad Flat Packages - PT (S-PQFP-G48
click to zoom

TLK111PTR Details

  • Manufacturer Part Number:

    TLK111PTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TLK111PTR Frequently Asked Questions (FAQs)

  • The TLK111PTR supports cable lengths up to 40 meters (131.2 feet) at 1 Gbps and up to 20 meters (65.6 feet) at 10 Gbps, depending on the cable quality and environment.
  • The TLK111PTR can be configured for different data rates using the rate select pins (RATE_SEL[1:0]) or through the serial management interface (SMI). The device can operate at 10 Mbps, 100 Mbps, 1 Gbps, and 10 Gbps.
  • The power consumption of the TLK111PTR varies depending on the operating mode and data rate. In 10 Gbps mode, the typical power consumption is around 1.2 W, while in 1 Gbps mode, it is around 0.6 W.
  • The TLK111PTR has built-in fault detection and isolation capabilities. The device can detect faults such as signal loss, signal degradation, and cable faults, and can isolate the faulty segment to prevent network downtime.
  • Yes, the TLK111PTR is designed to operate in harsh environments, including industrial and automotive applications. The device is rated for operation over a temperature range of -40°C to 125°C and can withstand electromagnetic interference (EMI) and electromagnetic compatibility (EMC) requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLK111PTR Overview

Use the download button to access the TLK111PTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLK11, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
