FLATPACK, HEAT SINK/SLUG, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Telecom IC Type:
TELECOM CIRCUIT
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
TLK2501IRCPG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TLK2501 datasheet (SLWS107F) and in the application note 'TLK2501 PCB Layout Guidelines' (SLAA544). It's essential to follow these guidelines to minimize signal reflections, crosstalk, and electromagnetic interference (EMI).
To ensure reliable operation at high temperatures, it's crucial to follow proper thermal design and layout guidelines. The TLK2501 has a junction temperature (TJ) rating of 150°C. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or heat sinks if necessary. Also, reduce power consumption and minimize self-heating effects.
The TLK2501 has built-in 100-ohm differential termination resistors, which can be enabled or disabled. However, these resistors have limitations, such as a limited power rating and potential for signal degradation at high frequencies. In some cases, external termination resistors may be necessary to ensure signal integrity.
To troubleshoot signal integrity issues, use a combination of tools such as oscilloscopes, signal generators, and protocol analyzers. Check for signal reflections, crosstalk, and jitter. Verify that the PCB layout and termination resistors are correct. Also, ensure that the device is properly configured and that the clock and data signals are within the specified frequency range.
The TLK2501 has specific power-up and power-down sequencing requirements to ensure proper operation. The device requires a power-up sequence of VCC followed by VCCA, and a power-down sequence of VCCA followed by VCC. Failure to follow these sequences can result in device malfunction or damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLK2501IRCPG4 Overview

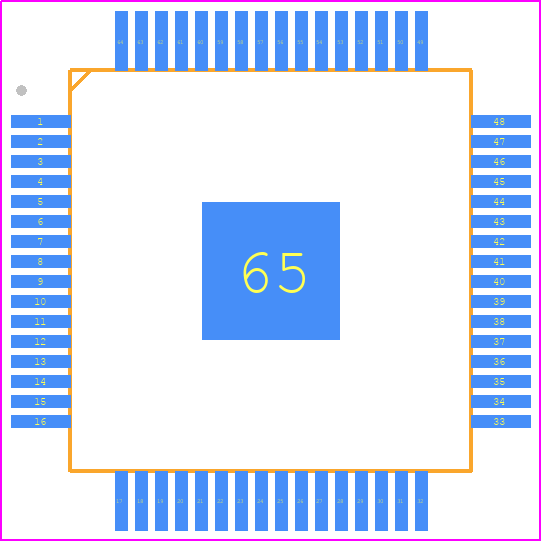

Use the download button to access the TLK2501IRCPG4 schematic symbol, PCB footprint, and 3D model.
