FLATPACK, HEAT SINK/SLUG, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Telecom IC Type:
TELECOM CIRCUIT
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
TLK2711AIRCPR Frequently Asked Questions (FAQs)
A good PCB layout for the TLK2711AIRCPR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the transmission lines. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation of the TLK2711AIRCPR in high-temperature environments, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and ensure good airflow around the device. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
To mitigate EMI and RFI when using the TLK2711AIRCPR, use a shielded enclosure, keep the device away from antennas and other EMI sources, and use EMI filters or chokes on the input and output lines. Additionally, ensure that the PCB layout is designed to minimize radiation and susceptibility to EMI.
To troubleshoot issues with the TLK2711AIRCPR, start by checking the power supply voltage and ensuring that it's within the recommended range. Then, verify that the device is properly configured and that the transmission lines are properly terminated. Use an oscilloscope to check the signal integrity and look for signs of signal degradation or distortion.
When using the TLK2711AIRCPR in a system with multiple transceivers, it's essential to ensure that each transceiver has its own dedicated transmission line and that the lines are properly isolated from each other. Additionally, consider using a common mode filter or a transformer to reduce electromagnetic interference between the transceivers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLK2711AIRCPR Overview

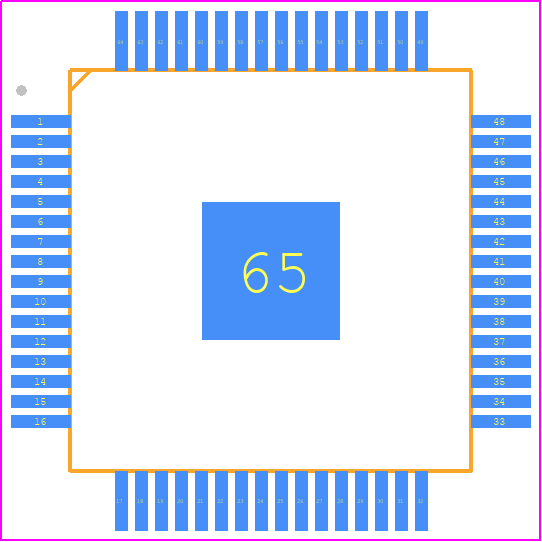

Use the download button to access the TLK2711AIRCPR schematic symbol, PCB footprint, and 3D model.
