Part Image

TLP114A - Toshiba

Description: TOSHIBA - TLP114A - Optocoupler, Transistor Output, 1 Channel, SOP, 5 Pins, 20 mA, 3.75 kV, 20 %

Download TLP114A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

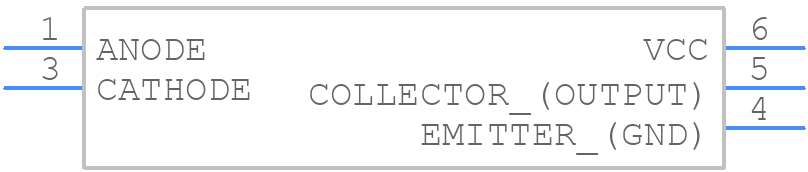

Symbol
TLP114A - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP114A - Toshiba PCB footprint - Other - Other - 11-4C2_2025
click to zoom

TLP114A Details

  • Manufacturer Part Number:

    TLP114A

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-6/5

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    TTL COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LINEAR IC OUTPUT OPTOCOUPLER

  • Response Time-Max:

    8e-7 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

TLP114A Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP114A is 4.5V to 30V.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a reliable ground. Also, ensure that the input voltage is within the recommended operating range.
  • The TLP114A can handle a maximum current of 100mA. Exceeding this limit may cause damage to the device.
  • To protect the TLP114A from ESD, handle the device by the body, use an anti-static wrist strap, and store the device in an anti-static bag or container.
  • The TLP114A is rated for operation up to 85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP114A Overview

Use the download button to access the TLP114A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP11, or try a keyword search, such as Optocoupler
