TLP118(TPL,E - Toshiba

Description: High Speed Optocouplers PDP 15kV 4.5 to 5.5V 5.0mA 60ns 3750 Vrms

Download TLP118(TPL,E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

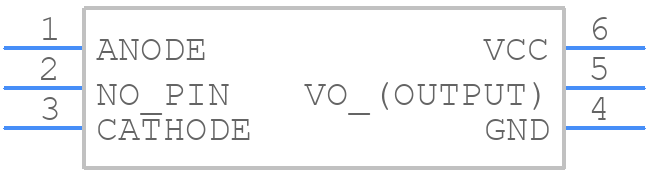

Symbol
TLP118(TPL,E - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP118(TPL,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 5pin SO6-2
click to zoom
3D Models
TLP118(TPL,E - Toshiba - 3D model - Small Outline Packages - 5pin SO6-2
click to zoom

TLP118(TPL,E Details

  • Manufacturer Part Number:

    TLP118(TPL,E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-6/5

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Response Time-Nom:

    3e-8 ns

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

TLP118(TPL,E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLP118 is -40°C to 125°C.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground. Also, ensure that the input voltage (VIN) is within the recommended range of 4.5V to 5.5V.
  • For optimal performance, use a 4-layer PCB with a solid ground plane, and keep the input and output traces as short as possible. Also, avoid routing high-frequency signals near the TLP118.
  • The TLP118 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and avoid touching the device's pins or leads.
  • The TLP118 supports data transfer rates up to 100 Mbps.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP118(TPL,E Overview

Use the download button to access the TLP118(TPL,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP11, or try a keyword search, such as Optocoupler

Parts related to TLP118(TPL,E

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

TLP118(TPL,E Alternates

Showing results

Image Part Number Model
Part Image TLP118(TPL,EO) Toshiba America Electronic Components

Logic IC Output Optocoupler, 1-Channel, 1-Element, 3750V Isolation
Part Image TLP118(V4-TPL Toshiba America Electronic Components

Logic IC Output Optocoupler, 1-Channel, 1-Element, 3750V Isolation
Part Image TLP118(TPL) Toshiba America Electronic Components

Logic IC Output Optocoupler, 1-Channel, 1-Element, 3750V Isolation
Part Image TLP118(TPL,F) Toshiba America Electronic Components

Logic IC Output Optocoupler, 1-Channel, 1-Element, 3750V Isolation
Part Image TLP118(E Toshiba America Electronic Components

Logic IC Output Optocoupler, 1-Channel, 1-Element, 3750V Isolation
For a full list of alternate parts for TLP118(TPL,E, check out Findchips.com
