TLP184(GR-TPL,SE - Toshiba

Description: Transistor Output Optocouplers 50mA Photocoupler 80V 50mA 3750Vrms

Download TLP184(GR-TPL,SE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

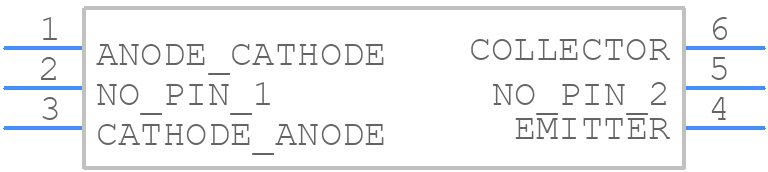

TLP184(GR-TPL,SE - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP184(GR-TPL,SE - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4M1S_1
click to zoom
3D Models
TLP184(GR-TPL,SE - Toshiba - 3D model - Small Outline Packages - 11-4M1S_1
click to zoom

TLP184(GR-TPL,SE Details

  • Manufacturer Part Number:

    TLP184(GR-TPL,SE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6/4

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    80 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    YES

TLP184(GR-TPL,SE Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP184 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the TLP184 is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value for the input LED of the TLP184 can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired forward current.
  • The typical propagation delay time for the TLP184 is around 10-20 μs, but this can vary depending on the specific application and operating conditions.
