A good PCB layout for the TLP2168(F) involves placing the device close to the load, using a solid ground plane, and minimizing the length of the high-frequency traces. Additionally, it is recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
To ensure reliability in high-temperature applications, it is essential to follow the recommended derating curves for the TLP2168(F). Additionally, ensure good thermal management by providing adequate heat sinking and airflow around the device.
The maximum allowable voltage drop across the TLP2168(F) is typically around 1.5V to 2V. Exceeding this voltage drop may lead to reduced reliability and potential device failure.
Yes, the TLP2168(F) can be used in high-current applications, but it is essential to ensure that the device is properly heat-sinked and that the maximum current rating is not exceeded. Additionally, consider using a current sense resistor to monitor the current and prevent overheating.
To troubleshoot issues with the TLP2168(F), start by checking the input voltage, output current, and temperature. Verify that the device is properly heat-sinked and that the PCB layout is correct. Use an oscilloscope to check for voltage spikes or noise on the input or output. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2168(F) Overview

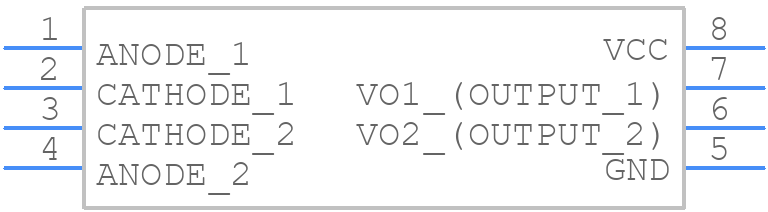

Use the download button to access the TLP2168(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP21,
or try a keyword search, such as Optocoupler
