A good PCB layout for the TLP2303(E) should minimize parasitic inductance and capacitance. Keep the input and output traces short and away from each other, and use a solid ground plane to reduce noise. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure reliable operation in high-temperature environments, make sure to follow the recommended operating temperature range of -40°C to 125°C. Also, consider the derating of the device's power dissipation and ensure good thermal management, such as using a heat sink or a thermal pad, to prevent overheating.
The maximum allowable voltage on the input pins of the TLP2303(E) is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V to ensure reliable operation.
Yes, the TLP2303(E) can be used in switching power supply applications, but it's essential to ensure that the device is properly bypassed and decoupled to prevent noise and oscillations. Also, consider the device's power dissipation and thermal management to prevent overheating.
To troubleshoot issues with the TLP2303(E), start by checking the device's power supply voltage, input signals, and output signals using an oscilloscope or a logic analyzer. Verify that the device is properly connected and that the PCB layout is correct. Also, check for any signs of overheating, such as excessive current consumption or thermal shutdown.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2303(E(T Overview

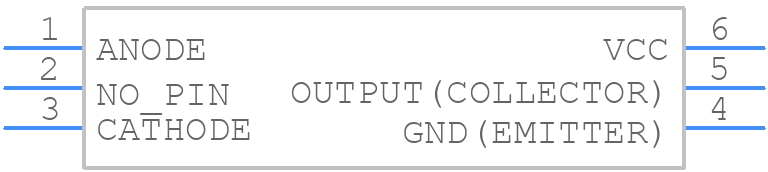

Use the download button to access the TLP2303(E(T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23,
or try a keyword search, such as Optocoupler
