A good PCB layout for the TLP2355(E) involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 0.1uF bypass capacitor between VCC and GND pins.
To ensure proper power-on and power-off of the TLP2355(E), it's recommended to use a power-up sequence where VCC is applied before the input signal, and power-down sequence where the input signal is removed before VCC. Additionally, a power-on reset circuit can be used to ensure the device is properly initialized.
The maximum allowable voltage on the input pins of the TLP2355(E) is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V for optimal performance and reliability.
The TLP2355(E) is rated for operation up to 85°C, but it's recommended to derate the device's performance at higher temperatures. For high-temperature applications, it's recommended to consult with Toshiba's application engineers to determine the suitability of the device for the specific application.
To troubleshoot issues with the TLP2355(E), start by verifying the power supply voltage and input signal integrity. Check for proper PCB layout and decoupling, and ensure that the device is properly powered on and off. If issues persist, consult the datasheet and application notes, or contact Toshiba's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2355(E(T Overview

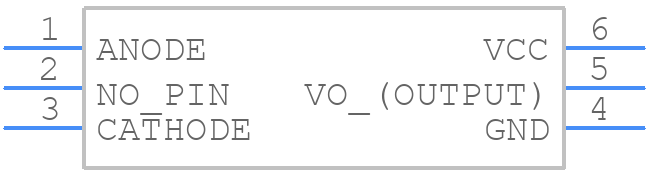

Use the download button to access the TLP2355(E(T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23,
or try a keyword search, such as Optocoupler
