A good PCB layout for the TLP2368 involves keeping the input and output traces short and separate, using a solid ground plane, and placing a 0.1uF bypass capacitor close to the VCC pin. Additionally, it's recommended to use a 1kΩ to 10kΩ pull-up resistor on the output pin to ensure proper operation.
The TLP2368 has a built-in power-up and power-down sequence control. However, it's recommended to power up the VCC pin first, followed by the input signal, and then power down the input signal before the VCC pin. This ensures proper operation and prevents damage to the device.
The maximum cable length supported by the TLP2368 depends on the specific application and the type of cable used. However, as a general guideline, the TLP2368 can support cable lengths up to 10 meters (33 feet) for data rates up to 100 Mbps. For longer cable lengths, it's recommended to use repeaters or signal conditioners to ensure signal integrity.
The TLP2368 is rated for operation up to 85°C (185°F). However, it's recommended to derate the device's performance and consider using a heat sink or thermal management system for high-temperature applications above 70°C (158°F).
To ensure EMC with the TLP2368, it's recommended to use a shielded cable, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, follow proper PCB layout and grounding practices to minimize electromagnetic radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2368(TPR,E Overview

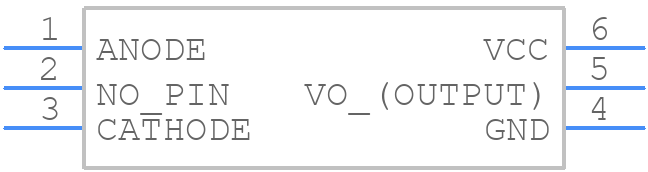

Use the download button to access the TLP2368(TPR,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23,
or try a keyword search, such as Optocoupler
