TLP2368B(TPL,E - Toshiba

Description: Logic Output Optoisolator 20Mbps Open Drain 3750Vrms 1 Channel 50kV/µs CMTI 6-SO, 5 Lead

Download TLP2368B(TPL,E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP2368B(TPL,E model

Email notifications will be applied after download.

Send part feedback

Symbol

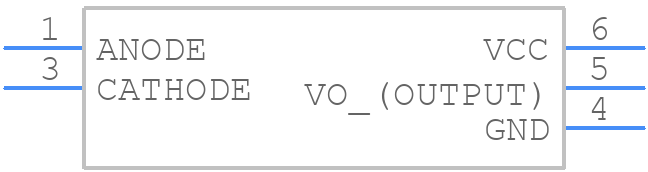

TLP2368B(TPL,E - Toshiba - PCB symbol

PCB Footprints

TLP2368B(TPL,E - Toshiba PCB footprint - Other - Other - 11-4L1S-2025

3D Models

TLP2368B(TPL,E - Toshiba - 3D model - Other - 11-4L1S-2025

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP2368B(TPL,E
Part Number TLP2368B(TPL,E
Manufacturer Toshiba
Pin Count 5
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 11-4L1S-2025
Released Date May 21, 2025
Last Modified Date May 21, 2025 3:51 AM UTC
Pinout / Pin List Click Here (Member Only)

TLP2368B(TPL,E Details

Manufacturer Part Number:
TLP2368B(TPL,E
Part Life Cycle Code:
Active
Package Description:
SOP-6/5
HTS Code:
8541.40.80.00
Manufacturer:
Toshiba America Electronic Components
YTEOL:
9
Configuration:
COMPLEX
Data Rate-Nom:
20 MBps
Forward Current-Max:
0.025 A
Isolation Voltage-Max:
3750 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
1
Number of Functions:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Response Time-Max:
6e-8 s
Supply Voltage-Min:
2.7 V
Surface Mount:
YES

TLP2368B(TPL,E Frequently Asked Questions (FAQs)

The maximum operating frequency of the TLP2368B is 100 MHz.
Yes, the TLP2368B is compatible with 3.3V systems, but it can also operate at 1.8V, 2.5V, and 5V.
The propagation delay of the TLP2368B is typically around 10 ns, but it can vary depending on the operating conditions and output load.
Yes, the TLP2368B is designed for high-speed data transmission and can support data rates up to 100 Mbps.
Yes, the TLP2368B is designed to support hot-swapping and can withstand the voltage and current transients associated with hot-swapping.

Trust Checks

Community Provided

System Verified

Community Approved

TLP2368B(TPL,E Overview

Use the download button to access the TLP2368B(TPL,E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP23, or try a keyword search, such as Optocoupler
