A good PCB layout for the TLP2370 involves keeping the input and output traces short and separate, using a ground plane, and placing a 0.1uF bypass capacitor close to the VCC pin. Additionally, the photodiode and output transistor should be placed close together to minimize parasitic inductance.
To ensure reliable operation of the TLP2370 in high-temperature environments, it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the junction temperature below the maximum rating of 150°C.
The maximum allowable voltage on the input pin of the TLP2370 is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage below 5V to ensure reliable operation and prevent damage to the device.
While the TLP2370 is optimized for use with Toshiba's TFPS photodiodes, it can be used with other types of photodiodes. However, the performance may vary depending on the photodiode's characteristics, and additional circuitry may be required to achieve optimal performance.
To troubleshoot issues with the TLP2370, start by verifying the input signal, checking the power supply voltage, and ensuring proper PCB layout and component placement. Use an oscilloscope to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2370(TPL,E Overview

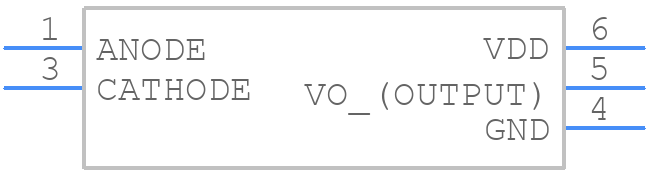

Use the download button to access the TLP2370(TPL,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23,
or try a keyword search, such as Optocoupler
