Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce noise and ensure signal integrity. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking, using thermal interface materials, and keeping the junction temperature below the maximum rating of 125°C.
The maximum allowable voltage on the VCC pin of the TLP2408(F) is 7V, although the recommended operating voltage is 5V. Exceeding this voltage may cause damage to the device.
Yes, the TLP2408(F) can be used in a 3.3V system, but the output voltage will be limited to 3.3V. The device will still operate correctly, but the output voltage will not reach the full 5V level.
The TLP2408(F) has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing, such as using ESD-safe materials, grounding straps, and ionizers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2408(F) Overview

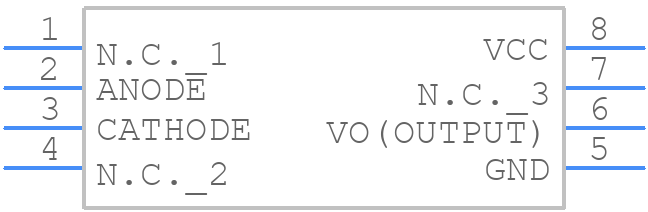

Use the download button to access the TLP2408(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP24,
or try a keyword search, such as Optocoupler
