TLP265J - Toshiba

Description: Toshiba TLP265J AC Input Infrared LED Output Optocoupler, Surface Mount, 4-Pin SOIC

Download TLP265J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

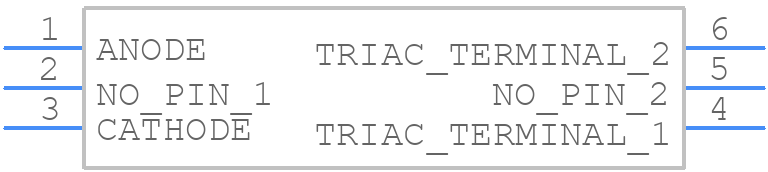

TLP265J - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP265J - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4M1S_1
click to zoom
3D Models
TLP265J - Toshiba - 3D model - Small Outline Packages - 11-4M1S_1
click to zoom

TLP265J Details

  • Manufacturer Part Number:

    TLP265J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Input Trigger Current-Max:

    0.01 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.07 A

  • On-State Voltage-Max:

    2.8 V

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER

  • Peak Off-state Voltage-Min:

    600 V

  • Peak Surge Current:

    1.2 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Reverse Leakage Current-Max:

    0.00001 A

  • Surface Mount:

    YES

TLP265J Frequently Asked Questions (FAQs)

  • The TLP265J can operate in a temperature range of -40°C to 100°C.
  • Yes, the TLP265J has a high-speed switching time of 10 μs, making it suitable for high-speed applications.
  • The minimum creepage distance required for the TLP265J is 4.5 mm, which is the distance between the input and output pins.
  • Yes, the TLP265J can withstand high voltages up to 5300 Vrms, making it suitable for high-voltage applications.
  • Yes, the TLP265J is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP265J Overview

Use the download button to access the TLP265J schematic symbol, PCB footprint, and 3D model.
