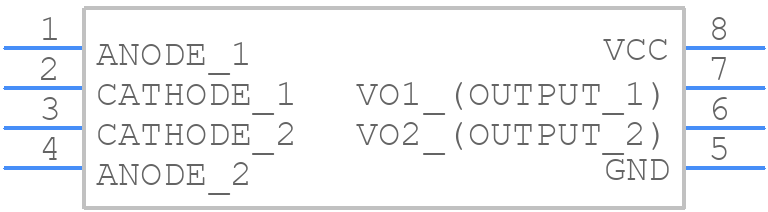

TLP2662F(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2662F(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C402S
click to zoom
3D Models
TLP2662F(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C402S
click to zoom

TLP2662F(F) Details

  • Manufacturer Part Number:

    TLP2662F(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Nom:

    1.2e-8 ns

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    NO

TLP2662F(F) Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP2662F(F) should minimize the distance between the input and output pins, use a ground plane to reduce noise, and avoid running high-frequency signals near the optocoupler. Toshiba provides a recommended PCB layout in their application notes.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper derating guidelines, provide adequate heat sinking, and ensure that the device is operated within its recommended temperature range. Additionally, consider using a thermally conductive material, such as a heat sink or thermal pad, to dissipate heat.
  • The maximum allowable voltage on the input pin of the TLP2662F(F) is 30V, but it's recommended to limit the input voltage to 20V or less to ensure reliable operation and prevent damage to the device.
  • Yes, the TLP2662F(F) can be used in high-frequency applications up to 10Mbps. However, it's essential to follow proper PCB layout guidelines and ensure that the device is operated within its recommended frequency range to minimize signal distortion and ensure reliable operation.
  • To troubleshoot issues with the TLP2662F(F), start by verifying the input signal, checking for proper power supply voltage, and ensuring that the device is properly connected. Use an oscilloscope to monitor the input and output signals, and consult Toshiba's application notes and datasheet for guidance on troubleshooting common issues.
