A good PCB layout for the TLP2710(E) should minimize parasitic inductance and capacitance. Keep the input and output traces short and separate, and use a solid ground plane to reduce noise. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure reliable operation at high temperatures, make sure to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 125°C. Also, ensure good thermal dissipation by using a heat sink or a thermally conductive PCB material.
The maximum allowable voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.0V to 5.0V to ensure reliable operation.
Yes, the TLP2710(E) is suitable for high-speed applications up to 100 Mbps. However, the actual operating frequency may be limited by the PCB layout, signal integrity, and other system-level factors. Ensure that the signal rise and fall times are within the recommended specifications.
The TLP2710(E) has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded to prevent static electricity buildup.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2710(E Overview

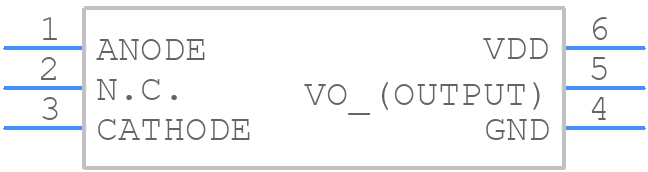

Use the download button to access the TLP2710(E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP27,
or try a keyword search, such as Optocoupler
