TLP2770(E footprint, schematic symbol and 3D model by Toshiba

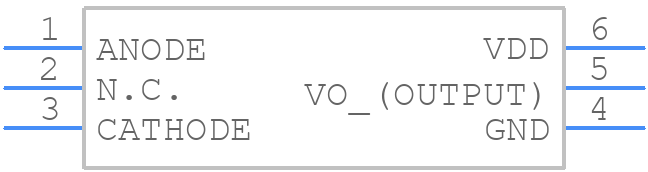

Symbol

PCB Footprints

3D Models

TLP2770(E Details

The maximum operating temperature range for the TLP2770(E) is -40°C to 125°C.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground. Additionally, decouple the VCC pin with a 0.1uF capacitor to reduce noise.
To minimize EMI and noise, use a multi-layer PCB with a solid ground plane, keep the input and output traces short and separate, and avoid running sensitive signals near the TLP2770(E) pins.
Store the TLP2770(E) in a dry, cool place, away from direct sunlight and moisture. During shipping, use anti-static packaging and handle the devices by the body, not the pins.
Use a soldering iron with a temperature of 250°C to 260°C, and a soldering time of 3 to 5 seconds. Avoid applying excessive force or bending the pins during soldering.

Community Provided

System Verified

Community Approved

Use the download button to access the TLP2770(E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP27, or try a keyword search, such as Optocoupler
