TLP292-4(E - Toshiba

Description: Transistor Output Optocouplers 4ch Transistor opto coupler

Download TLP292-4(E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP292-4(E model

Email notifications will be applied after download.

Send part feedback

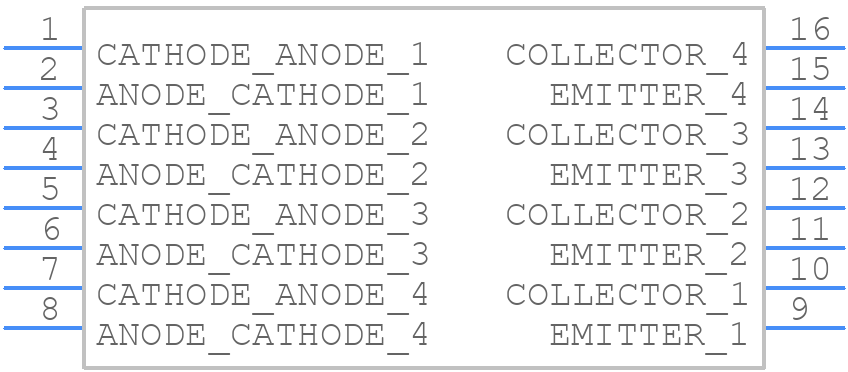

Symbol

TLP292-4(E - Toshiba - PCB symbol

PCB Footprints

TLP292-4(E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-11F1

3D Models

TLP292-4(E - Toshiba - 3D model - Small Outline Packages - 11-11F1

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP292-4(E
Part Number TLP292-4(E
Manufacturer Toshiba
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 11-11F1
Released Date Apr 11, 2022
Last Modified Date Apr 4, 2025 2:48 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP292-4(E Details

Manufacturer Part Number:
TLP292-4(E
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOP-16
ECCN Code:
3A001.a.2.c
HTS Code:
8541.40.80.00
Factory Lead Time:
14 Weeks
Manufacturer:
Toshiba America Electronic Components
YTEOL:
8
Additional Feature:
UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min:
80 V
Configuration:
SEPARATE, 4 CHANNELS
Current Transfer Ratio-Min:
50%
Dark Current-Max:
80 nA
Forward Current-Max:
0.05 A
Forward Voltage-Max:
1.4 V
Isolation Voltage-Max:
3750 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
4
On-State Current-Max:
0.05 A
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Optoelectronic Device Type:
AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max:
0.17 W
Response Time-Max:
0.000002 s
Surface Mount:
YES

TLP292-4(E Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP292-4(E) is 3.0 to 5.5 volts.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a reliable ground. Also, ensure that the input voltage is within the recommended operating range.
The TLP292-4(E) can sink or source up to 50mA of current.
To protect the TLP292-4(E) from ESD, handle the device by the body, use an anti-static wrist strap, and store the device in an anti-static bag or container.
The maximum operating temperature range for the TLP292-4(E) is -40°C to 85°C.

Trust Checks

Community Provided

System Verified

Community Approved

TLP292-4(E Overview

Use the download button to access the TLP292-4(E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP29, or try a keyword search, such as Optocoupler
