TLP292-4(GB footprint, schematic symbol and 3D model by Toshiba

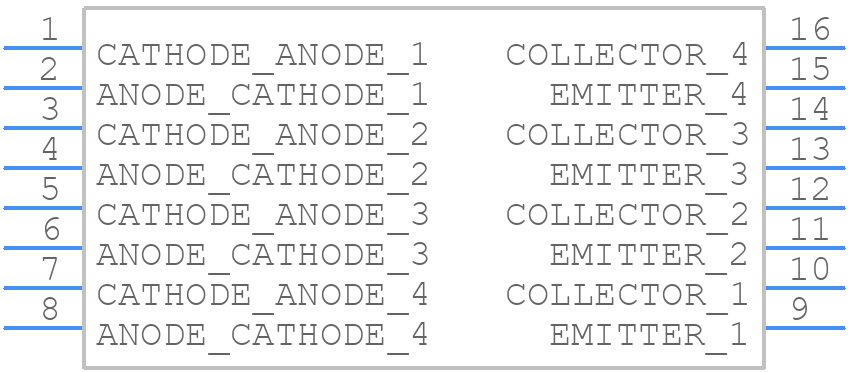

Symbol

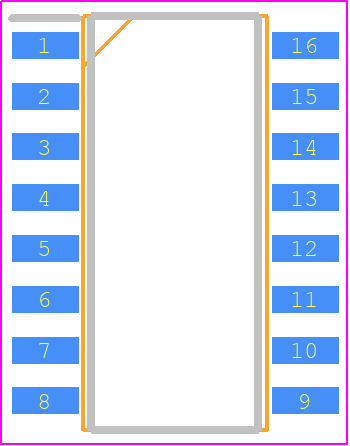

PCB Footprints

3D Models

TLP292-4(GB Details

The recommended PCB layout for the TLP292-4 involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the distance between the optocoupler and the input/output components.
To ensure reliable operation of the TLP292-4 in high-temperature environments, it's essential to follow proper derating guidelines, use a heat sink if necessary, and ensure good thermal conductivity between the device and the PCB.
The maximum allowable voltage for the TLP292-4 is 35V, but it's recommended to operate the device within the specified voltage range (5V to 20V) for reliable operation.
The TLP292-4 is suitable for high-frequency applications up to 10 MHz, but it's essential to consider the device's bandwidth, rise time, and fall time when designing the circuit.
To handle EMI and RFI in circuits using the TLP292-4, use proper shielding, grounding, and filtering techniques, and ensure that the optocoupler is placed away from noise sources.

Community Provided

System Verified

Community Approved

Use the download button to access the TLP292-4(GB schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP29, or try a keyword search, such as Optocoupler
