TLP292-4(LA,E - Toshiba

Description: Transistor Output Optocouplers 4ch Transistor opto coupler

Download TLP292-4(LA,E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP292-4(LA,E model

Email notifications will be applied after download.

Send part feedback

Symbol

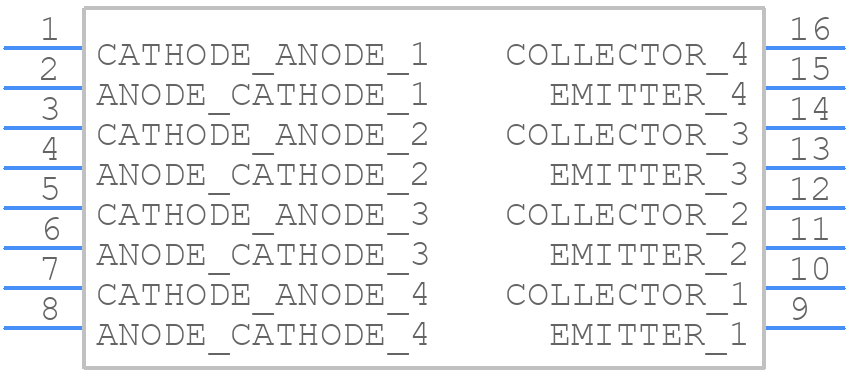

TLP292-4(LA,E - Toshiba - PCB symbol

PCB Footprints

TLP292-4(LA,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-11F1

3D Models

TLP292-4(LA,E - Toshiba - 3D model - Small Outline Packages - 11-11F1

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP292-4(LA,E
Part Number TLP292-4(LA,E
Manufacturer Toshiba
Pin Count 16
Part Category Phototransistor
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 11-11F1
Released Date Apr 11, 2022
Last Modified Date Apr 4, 2025 2:48 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP292-4(LA,E Details

Manufacturer Part Number:
TLP292-4(LA,E
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOP-16
ECCN Code:
3A001.a.2.c
HTS Code:
8541.40.80.00
Factory Lead Time:
14 Weeks
Manufacturer:
Toshiba America Electronic Components
YTEOL:
8
Additional Feature:
UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min:
80 V
Configuration:
SEPARATE, 4 CHANNELS
Current Transfer Ratio-Min:
50%
Dark Current-Max:
80 nA
Forward Current-Max:
0.05 A
Forward Voltage-Max:
1.4 V
Isolation Voltage-Max:
3750 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
4
On-State Current-Max:
0.05 A
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Optoelectronic Device Type:
AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max:
0.17 W
Response Time-Max:
0.000002 s
Surface Mount:
YES

TLP292-4(LA,E Frequently Asked Questions (FAQs)

The recommended operating voltage range for TLP292-4(LA,E) is 3.0 to 5.5 V.
Yes, the TLP292-4(LA,E) is compatible with both 3.3 V and 5 V logic systems, making it a versatile optocoupler for various applications.
The TLP292-4(LA,E) supports data transfer rates up to 10 Mbps, making it suitable for high-speed applications.
Yes, the TLP292-4(LA,E) has an operating temperature range of -40°C to 110°C, making it suitable for high-temperature applications.
The typical propagation delay time for the TLP292-4(LA,E) is around 50 ns, which is relatively fast for an optocoupler.
