TLP292-4(TP,E - Toshiba

Description: Transistor Output Optocouplers 4ch Transistor opto coupler

Download TLP292-4(TP,E Model

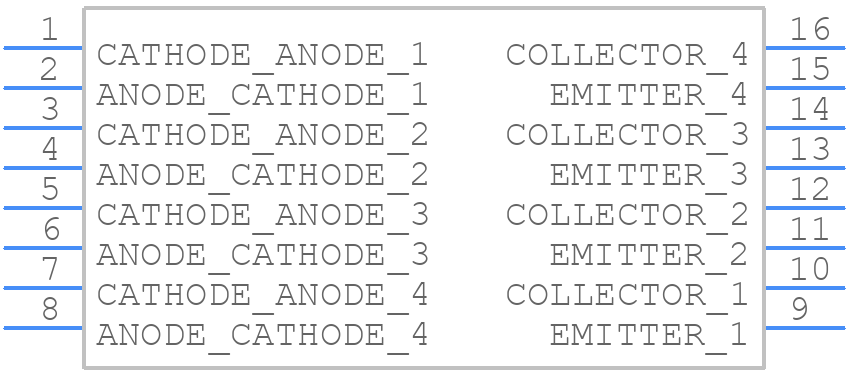

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP292-4(TP,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TLP292-4(TP,E
click to zoom
3D Models
TLP292-4(TP,E - Toshiba  - 3D model - Small Outline Packages - TLP292-4(TP,E
click to zoom

TLP292-4(TP,E Details

  • Manufacturer Part Number:

    TLP292-4(TP,E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A001.a.2.c

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Dark Current-Max:

    80 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Power Dissipation-Max:

    0.17 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    YES

TLP292-4(TP,E Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the device.
  • Handle the device by the body, not the leads, and store it in a dry, dark place to prevent moisture and light damage. Use an anti-static wrist strap or mat to prevent electrostatic discharge.
  • The maximum allowable voltage is 5V, exceeding this voltage may cause damage to the device.
  • Ensure the anode is connected to a positive voltage source and the cathode is connected to a negative voltage source or ground, and that the voltage difference between the anode and cathode does not exceed the maximum rating.
  • The typical response time is 10ns, but this can vary depending on the specific application and operating conditions.
