TLP292-4(TPR,E - Toshiba

Description: Transistor Output Optocouplers 4ch Transistor opto coupler

Download TLP292-4(TPR,E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

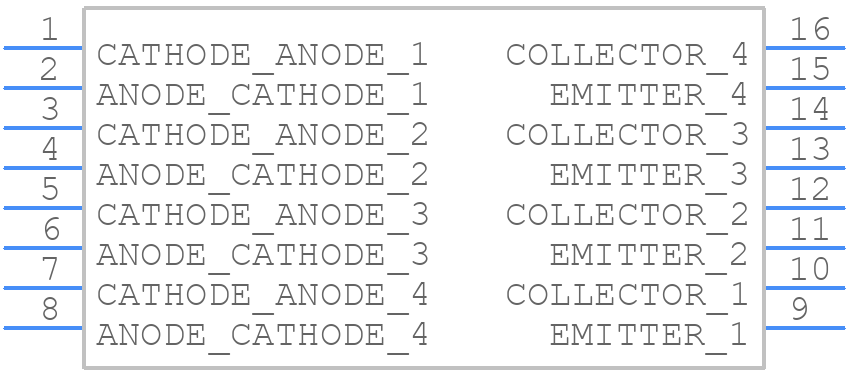

TLP292-4(TPR,E - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP292-4(TPR,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-11F1
click to zoom
3D Models
TLP292-4(TPR,E - Toshiba - 3D model - Small Outline Packages - 11-11F1
click to zoom

TLP292-4(TPR,E Details

  • Manufacturer Part Number:

    TLP292-4(TPR,E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A001.a.2.c

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Dark Current-Max:

    80 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, EMBOSSED, PLASTIC, 13 INCH

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    YES

TLP292-4(TPR,E Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP292-4 is 3.0 to 5.5 volts.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal management system to keep the junction temperature below 150°C.
  • The maximum current rating for the TLP292-4 is 50 mA per channel.
  • Yes, the TLP292-4 is suitable for high-speed applications, with a propagation delay time of 10 ns (typical) and a data transfer rate of up to 10 Mbps.
  • To protect the TLP292-4 from ESD, it is recommended to follow proper handling and storage procedures, such as using anti-static bags or tubes, and to implement ESD protection circuits in the system design.
