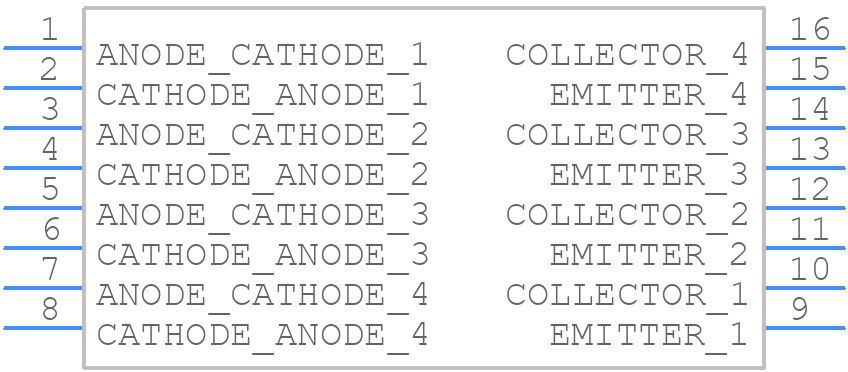

TLP294-4 - Toshiba

TLP294-4 Details

• Manufacturer Part Number:

  TLP294-4

• Part Life Cycle Code:

  Active

• Package Description:

  SOP-16

• ECCN Code:

  3A001.a.2.c

• HTS Code:

  8541.40.80.00

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  8

• Additional Feature:

  UL RECOGNIZED

• Coll-Emtr Bkdn Voltage-Min:

  80 V

• Configuration:

  SEPARATE, 4 CHANNELS WITH BUILT-IN RESISTOR

• Current Transfer Ratio-Min:

  100%

• Dark Current-Max:

  100 nA

• Forward Current-Max:

  0.05 A

• Forward Voltage-Max:

  1.3 V

• Isolation Voltage-Max:

  3750 V

• Mounting Feature:

  SURFACE MOUNT

• Number of Elements:

  4

• On-State Current-Max:

  0.05 A

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Optoelectronic Device Type:

  AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

• Power Dissipation-Max:

  0.1 W

• Response Time-Max:

  0.000002 s

• Surface Mount:

  YES
