TLP350H(F) - Toshiba

Description: Toshiba, TLP350H(F) AC Input IC Output Optocoupler, Through Hole, 8-Pin DIP

Download TLP350H(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

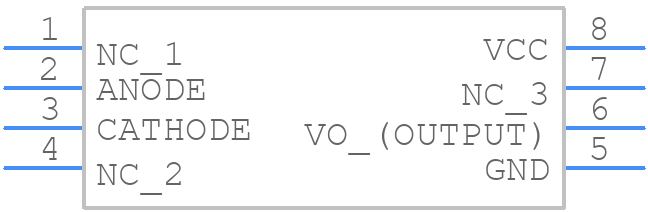

TLP350H(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP350H(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4S
click to zoom
3D Models
TLP350H(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4S
click to zoom

TLP350H(F) Details

  • Manufacturer Part Number:

    TLP350H(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, 11-10C4S, DIP-8

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    1.5e-8 ns

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    NO

TLP350H(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP350H(F) is 3.3V to 5V.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, ensure that the input signal is within the recommended voltage range.
  • The TLP350H(F) can sink or source up to 50mA of current, but it's recommended to limit the current to 20mA for reliable operation.
  • The TLP350H(F) has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.
  • The TLP350H(F) is rated for operation up to 85°C, but it's recommended to derate the device's performance at higher temperatures. Consult the datasheet for specific derating guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP350H(F) Overview

Use the download button to access the TLP350H(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP35, or try a keyword search, such as Optocoupler
