Part Image

TLP511GA - Toshiba

Description: gaas ired & photo-thyristor

Download TLP511GA Model

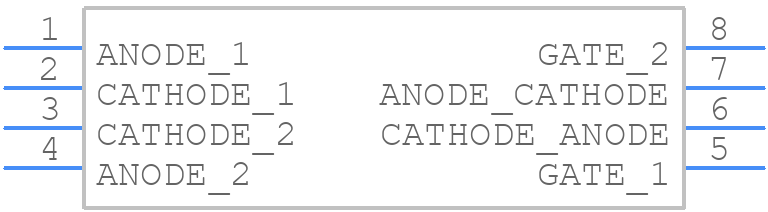

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP511GA - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C1
click to zoom
3D Models
TLP511GA - Toshiba  - 3D model - Dual-In-Line Packages - 11-10C1
click to zoom

TLP511GA Details

  • Manufacturer Part Number:

    TLP511GA

  • Part Life Cycle Code:

    Active Unconfirmed

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Input Trigger Current-Max:

    0.007 A

  • Isolation Voltage-Max:

    2500 V

  • Number of Elements:

    2

  • On-State Current-Max:

    0.15 A

  • On-State Voltage-Max:

    1.3 V

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    400 V

  • Reverse Leakage Current-Max:

    0.000005 A

TLP511GA Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce noise and ensure signal integrity. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • The TLP511GA requires a power-on reset (POR) circuit to ensure proper initialization. A 10kΩ pull-up resistor on the VCC pin and a 100nF capacitor on the VCC pin to GND are recommended to ensure a clean power-up sequence.
  • The maximum cable length supported by the TLP511GA depends on the specific application and the signal frequency. As a general guideline, Toshiba recommends keeping the cable length below 10 meters for reliable operation.
  • The TLP511GA is rated for operation up to 125°C, but Toshiba recommends derating the device for reliable operation above 85°C. Consult the datasheet for specific derating guidelines.
  • Toshiba recommends using a logic analyzer or oscilloscope to monitor the signal waveforms and verify proper signal transmission. Check the power supply, PCB layout, and signal termination for any issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP511GA Overview

Use the download button to access the TLP511GA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP51, or try a keyword search, such as Optocoupler
