TLP521-2SM - Isocom

Description: Optocoupler DC-IN 2-CH Transistor DC-OUT 8-Pin SMD

Download TLP521-2SM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

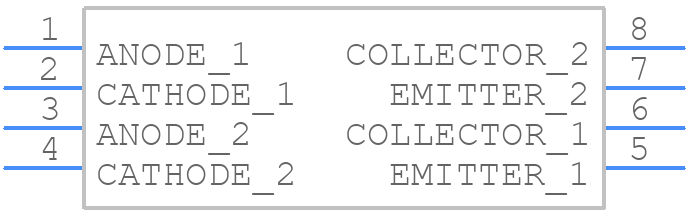

Symbol
TLP521-2SM - Isocom - PCB symbol
click to zoom
PCB Footprints
TLP521-2SM - Isocom PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SMD
click to zoom

TLP521-2SM Details

  • Manufacturer Part Number:

    TLP521-2SM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Isocom Components

  • YTEOL:

    7.5

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

TLP521-2SM Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP521-2SM is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the TLP521-2SM is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired LED current.
  • The typical propagation delay time for the TLP521-2SM is around 10-20 μs, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP521-2SM Overview

Use the download button to access the TLP521-2SM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP52, or try a keyword search, such as Optocoupler
