TLP521-4 - Isocom

Description: ISOCOM - TLP521-4 - OPTOCOUPLER, DIP-16, QUAD, TR. O/P

Download TLP521-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

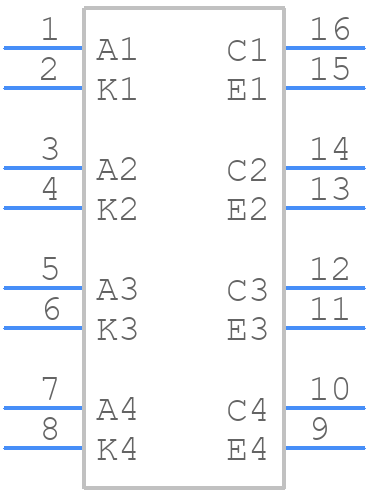

TLP521-4 - Isocom - PCB symbol
click to zoom
PCB Footprints

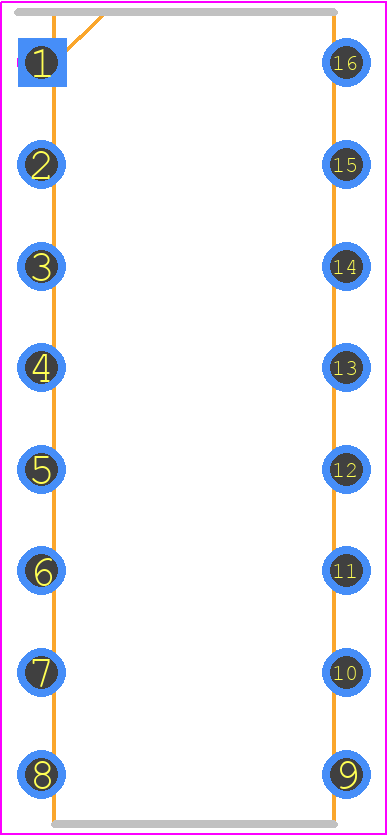

TLP521-4 - Isocom PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TLP521-4_1
click to zoom
3D Models
TLP521-4 - Isocom - 3D model - Dual-In-Line Packages - TLP521-4_1
click to zoom

TLP521-4 Details

  • Manufacturer Part Number:

    TLP521-4

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Isocom Components

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Terminal Finish:

    TIN

TLP521-4 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP521-4 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, provide adequate heat sinking, and ensure that the device is operated within its recommended temperature range.
  • The maximum allowable voltage for the TLP521-4 is 80 V, and it's essential to ensure that the device is operated within this voltage range to prevent damage.
  • The correct resistor value for the TLP521-4 depends on the specific application and the required current transfer ratio. A general guideline is to choose a resistor value that ensures the LED current is within the recommended range (e.g., 1-10 mA).
  • The typical response time of the TLP521-4 is around 10-20 μs, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP521-4 Overview

Use the download button to access the TLP521-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP52, or try a keyword search, such as Optocoupler
