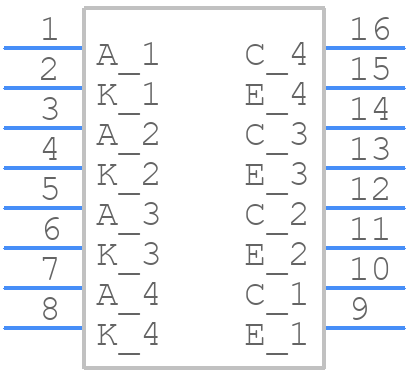

Symbol

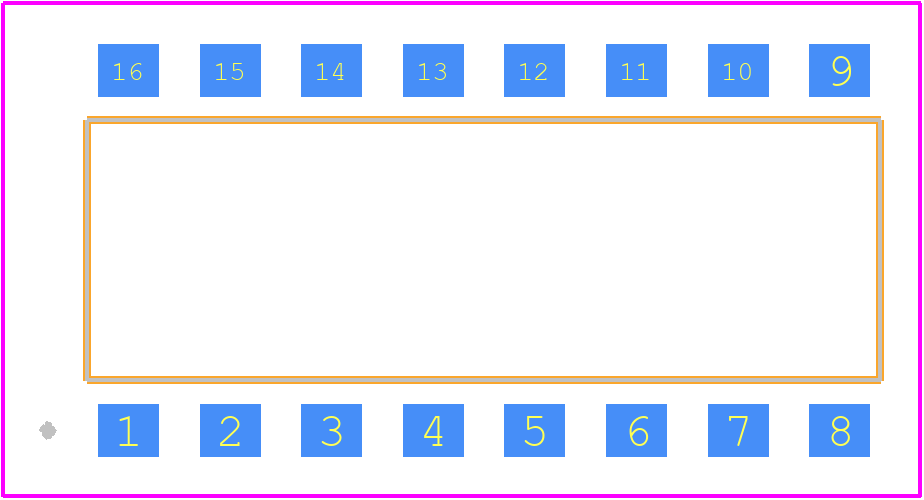

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TLP521-4BLSM
- Part Number TLP521-4BLSM
- Manufacturer Isocom
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TLP521-4BLSM-1
- Released Date Feb 14, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TLP521-4BLSM Details
-
Manufacturer Part Number:
TLP521-4BLSM
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8541.40.80.00
-
Manufacturer:
Isocom Components
-
YTEOL:
7.5
-
Additional Feature:
UL RECOGNIZED
-
Coll-Emtr Bkdn Voltage-Min:
55 V
-
Configuration:
SEPARATE, 4 CHANNELS
TLP521-4BLSM Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the TLP521-4BLSM is -40°C to 85°C.
-
The maximum current rating for each channel of the TLP521-4BLSM is 50mA.
-
Yes, the TLP521-4BLSM is compatible with both 3.3V and 5V logic levels.
-
The typical propagation delay time for the TLP521-4BLSM is around 10ns.
-
Yes, the TLP521-4BLSM has built-in electrostatic discharge (ESD) protection up to 2kV.
Trust Checks
Expert Contribution
System Verified
Community Approved
TLP521-4BLSM Overview
Use the download button to access the TLP521-4BLSM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP52,
or try a keyword search, such as Optocoupler
