TLP521-4GR - Isocom

Description: OPTOISO 5.3KV 4CH TRANS 16DIP

Download TLP521-4GR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TLP521-4GR - Isocom - PCB symbol
click to zoom
PCB Footprints

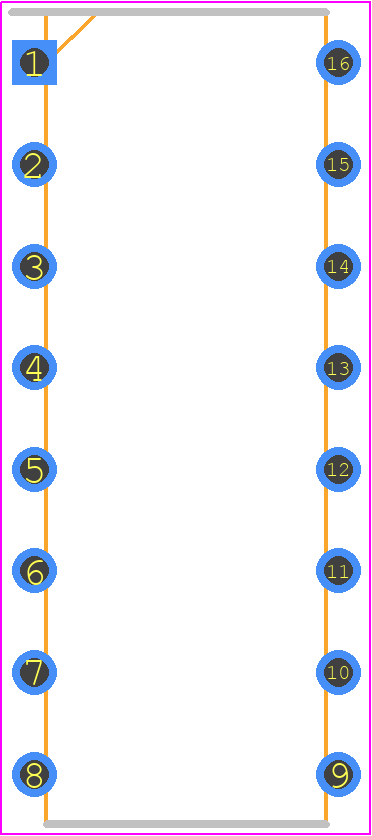

TLP521-4GR - Isocom PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TLP521-4
click to zoom
3D Models
TLP521-4GR - Isocom - 3D model - Dual-In-Line Packages - TLP521-4
click to zoom

TLP521-4GR Details

  • Manufacturer Part Number:

    TLP521-4GR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Date Of Intro:

    2017-01-20

  • Manufacturer:

    Isocom Components

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

TLP521-4GR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP521-4GR is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the datasheet, and to provide adequate heat sinking and thermal management.
  • The maximum allowable voltage for the TLP521-4GR is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value can be calculated using the formula R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired LED current.
  • The typical propagation delay time for the TLP521-4GR is around 2-3 μs, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP521-4GR Overview

Use the download button to access the TLP521-4GR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP52, or try a keyword search, such as Optocoupler
