TLP521-4XGB - Isocom

Description: OPTOISO 5.3KV 4CH TRANS 16DIP

Download TLP521-4XGB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

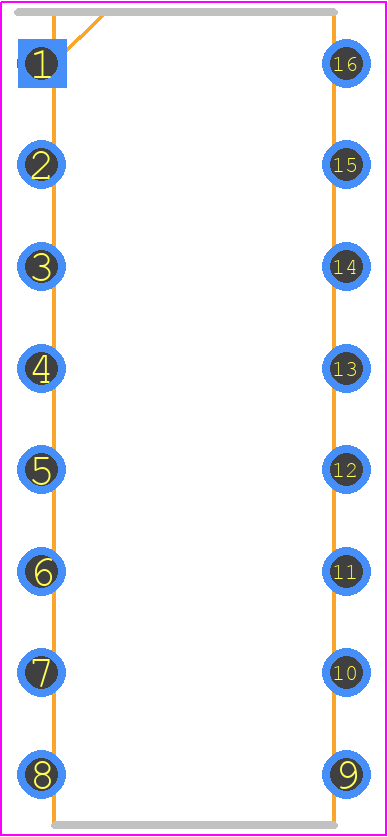

TLP521-4XGB - Isocom PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP16
click to zoom
3D Models
TLP521-4XGB - Isocom  - 3D model - Dual-In-Line Packages - DIP16
click to zoom

TLP521-4XGB Details

  • Manufacturer Part Number:

    TLP521-4XGB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Isocom Components

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    100%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Terminal Finish:

    TIN

TLP521-4XGB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP521-4XGB is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the datasheet's thermal derating curve.
  • The maximum allowable voltage for the TLP521-4XGB is 80V, but it is recommended to operate the device at a voltage below 60V for optimal performance and reliability.
  • The correct resistor value can be calculated using the formula R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired LED current.
  • The typical propagation delay time for the TLP521-4XGB is around 10-20 μs, but this can vary depending on the specific application and operating conditions.
