TLP5214A(TP,E - Toshiba

Description: Logic Output Optocouplers Photocoupler 35V 3.8mA 5000Vrms

Download TLP5214A(TP,E Model

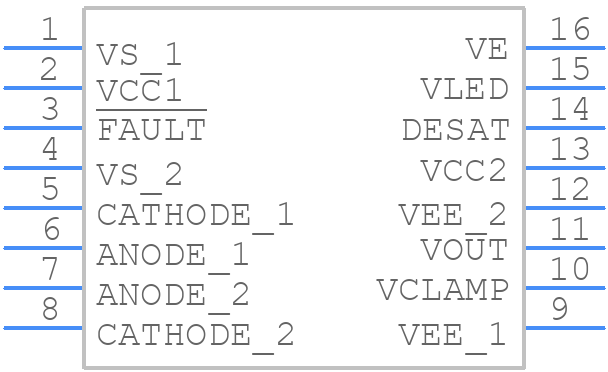

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP5214A(TP,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-10M1
click to zoom
3D Models
TLP5214A(TP,E - Toshiba  - 3D model - Small Outline Packages - 11-10M1
click to zoom

TLP5214A(TP,E Details

  • Manufacturer Part Number:

    TLP5214A(TP,E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    9

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Response Time-Nom:

    3.2e-8 ns

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    YES
