- Part Number TLP523-4
- Manufacturer Toshiba
- Pin Count 16
- Part Category LED
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - TLP523-4
- Released Date May 17, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TLP523-4 Details
-
Manufacturer Part Number:
TLP523-4
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Package Description:
DIP-16
-
HTS Code:
8541.40.80.00
-
Manufacturer:
Toshiba America Electronic Components
-
YTEOL:
0.4
-
Additional Feature:
UL RECOGNIZED
-
Coll-Emtr Bkdn Voltage-Min:
55 V
-
Configuration:
SEPARATE, 4 CHANNELS WITH BUILT-IN DIODE AND RESISTOR
TLP523-4 Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the TLP523-4 is -40°C to 100°C.
-
To ensure reliability, it's recommended to derate the device's current and voltage ratings at high temperatures. Consult the datasheet for specific derating guidelines.
-
The recommended soldering temperature is 260°C (max) for 10 seconds (max). Exceeding these limits can damage the device.
-
Yes, the TLP523-4 is designed to withstand vibrations up to 10G (10-2000Hz). However, it's essential to ensure proper mounting and soldering to prevent mechanical stress.
-
Use proper ESD protection measures, such as wrist straps, mats, and ionizers, to prevent damage to the device. The TLP523-4 has a human body model (HBM) ESD rating of 2kV.
Trust Checks
System Verified
TLP523-4 Overview

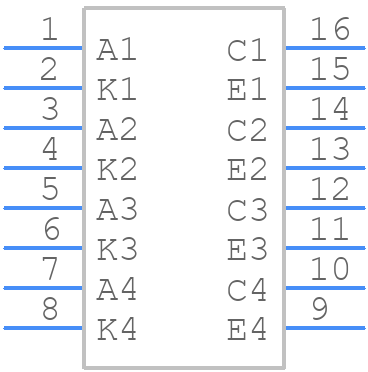

Use the download button to access the TLP523-4 schematic symbol, PCB footprint, and 3D model.
