A good PCB layout for the TLP557(F) involves keeping the input and output traces short and separate, using a solid ground plane, and placing a 0.1uF bypass capacitor close to the VCC pin. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The input capacitor should be chosen based on the input voltage and frequency. A general rule of thumb is to use a capacitor with a value of 10uF to 22uF, with a voltage rating of 1.5 to 2 times the input voltage. The capacitor should also have a low ESR (Equivalent Series Resistance) to minimize power loss.
The TLP557(F) has an operating temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. As a general guideline, the ambient temperature should be kept below 85°C to ensure reliable operation.
Yes, the TLP557(F) is designed for high-reliability applications. It has a robust design and is built with high-quality components to ensure long-term reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the reliability of the final product.
To troubleshoot issues with the TLP557(F), start by checking the input voltage and current, and ensure that the output voltage is within the specified range. Check for any signs of overheating, and verify that the PCB layout and component selection meet the recommended guidelines. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP557(F) Overview

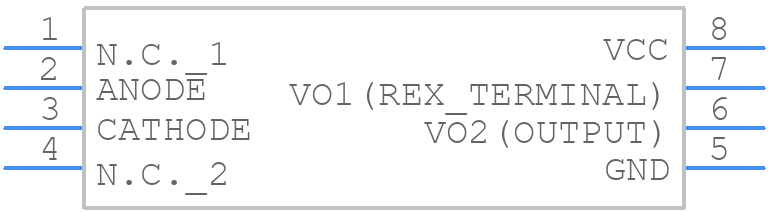

Use the download button to access the TLP557(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP55,
or try a keyword search, such as Optocoupler
